Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides Sulzer gripper opener 911 318 003(Projectile Opener) picking opening hook D2, Projectile loom gripper accessory -D2 opening hook parameter dimensions: total length is 51mm, total width is 30mm, height is 40.2mm, inner diameter of shaft hole at the rear of opener is 9mm, outer ring diameter at both ends is 14.5mm, shaft hole length at the rear is overall width--30mm.
The diameter of the circular hole in the middle position of D2 picking hook is 6mm, the depth is 8.5mm, and the thickness of the flat position of the front hook is 7mm；. The center distance between the two circular holes of the opener is 18.5 mm.

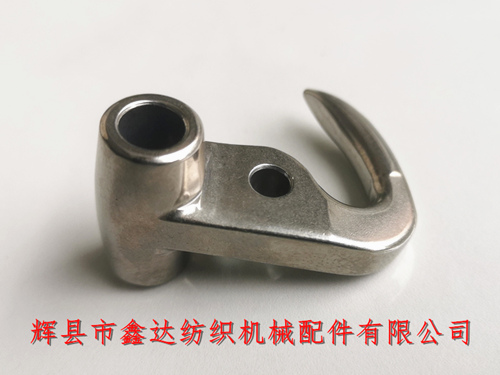

The weight of a single D2 opening hook (911318003) is about 66g, and the distance between the center of the 6mm round hole and the outside of the hook is 21.5mm. The following figure is a side view of the opener (P7100 opening hook, D2 Projectile Opener):
If textile enterprises in various cities need to purchase products such as openers,D2 Gripper openers, projectile Picking Set accessories, projectile Loom Parts and projectile accessories, please contact Mr. Yang of our company for consultation.
