Our company provides shuttle textile wood accessories, textile machine base plate, textile machine Bed Plate, Shuttle loom floor board, textile machine base plate (base plate). The dimensions of textile machine base plate (bed plate) are: total length 17 cm, width 94 mm, thickness 19 mm, the inner width of the gap for installing a27 foot wire is 15mm, and the inner length is 51 mm. Generally, the loom is composed of two wall plates, and each wall plate has two anchors, Therefore, each loom uses 4 baseboards, and the rapier uses 6 backing plates.

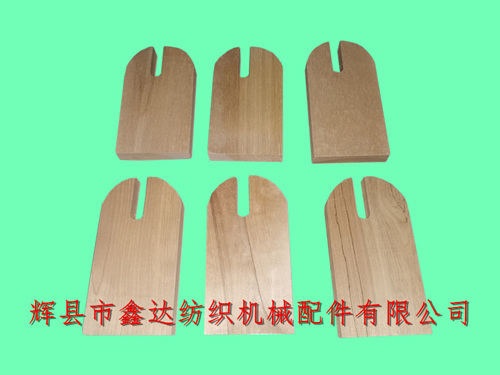

The skirting board used in the loom is generally processed from birch wood blocks, and its shape (see the above figure) is the same as the foundation of the wallboard. Because the wallboards used in the rapier loom are 1515-4301 and 4302, and the supporting wallboard is added next to the clutch, six skirting boards are used.
The floor board is a kind of textile wood parts and textile wood products. The weight of a single floor board (machine base plate) is about 0.1kg. Before the machine is installed, the four foundation planes of the placed floor boards need to be leveled. After the floor boards are used for a period of time, the foundation level of the machine needs to be checked in time and adjusted according to the actual situation.
Packaging: packed in woven bags, 200 pieces per bag. One side of the notch of the baseboard is 43.4mm away from the side, and the other side is 34mm away from the side. The notch is not broken from the middle, and there is a certain eccentricity.
Textile mills, cotton mills and weaving processing plants in various cities, if you need to purchase textile backing plates, baseboards, machine backing plates, textile wood pieces, baseboard products of rapier machines, or know other detailed parameters of this product, please contact Mr. Yang of our company for details!
