Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 7210 parts for broken weft stop (middle sleeve rocker arm) of old shuttle loom. Weft break stop, 7210, loom sleeve,The material is kt30-6, which is connected with 7200-2 inner sleeve. The chicken pecking rice accessories such as middle sleeve rocker 7210, 7200-8 saddle bar assembly, 7203 sleeve seat, 7209 bump head and other chicken pecking rice accessories have expansion opening, which are tightened and fixed on the three sleeves of the loom.

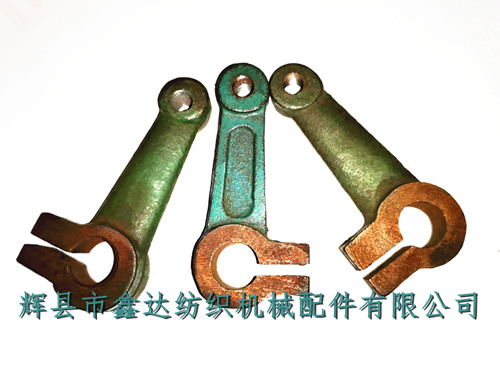

In the figure above, the bottom hole is the middle sleeve rocker pin 7221 with thread diameter of M8. The inner diameter of the upper tension hole is 14mm, and the center distance between the two holes is 60mm.
The products such as textile weft broken stop frame 7213 accessories, foot hanging pad iron 7202, swing rod 7200-6 (composed of 7228 and 7229), shuttle side support 7201, closing vertical bar assembly 7200-57215 support block, 7218 probe (also known as chicken needle) are commonly used vulnerable parts.
The loom weft breaking stop (middle sleeve rocker arm) 7210 has a total length of 8 cm, a width of 3.5 cm, a thickness of 13 mm, and a single accessory weight of about 0.063 kg. If you need to buy weft break stop, 7210, loom sleeve and other accessories, you can establish cooperation with our company!
