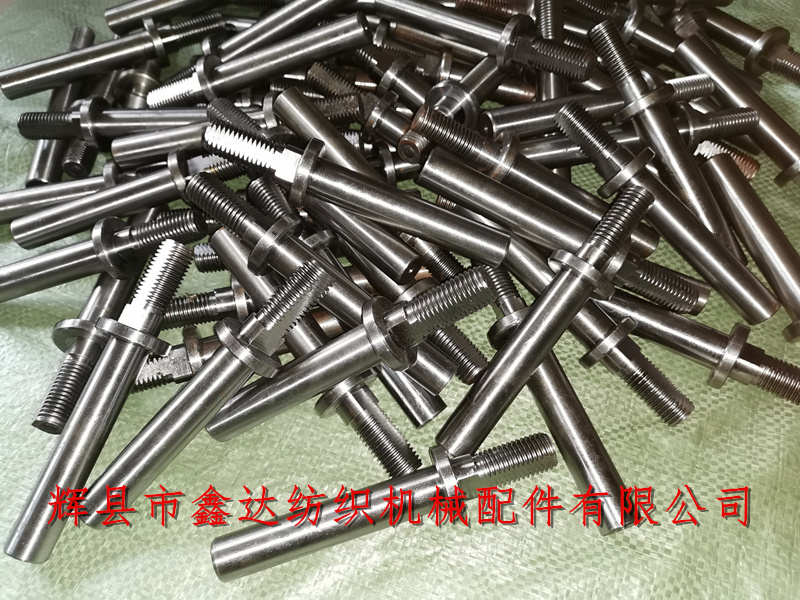

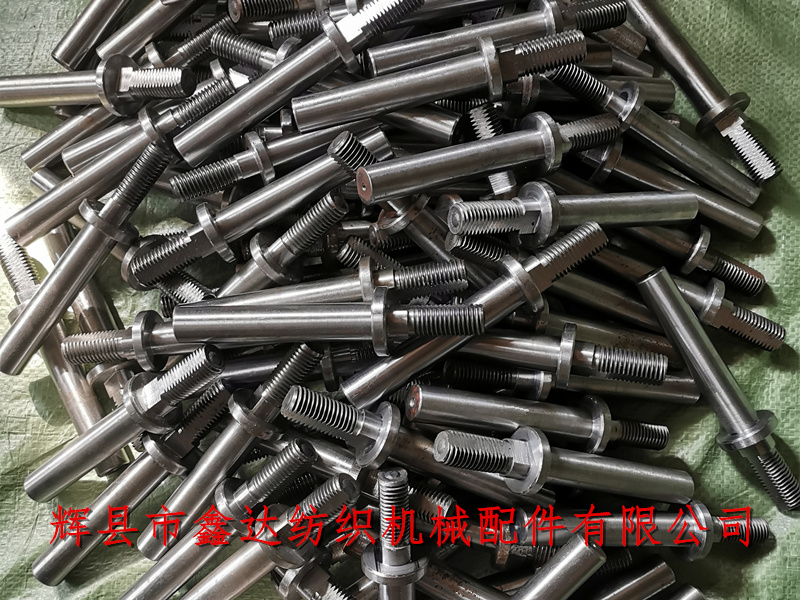

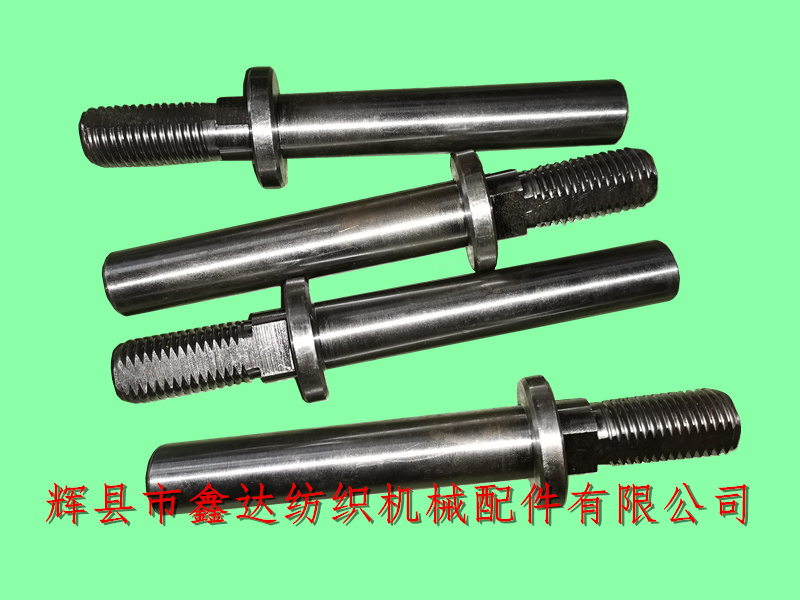

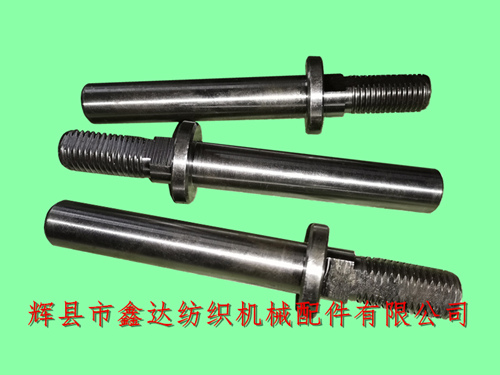

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides GA615 loom accessories-Loom Picking Stick Stud F18A BM20 Type,loom picking plate screw mandrel F18A beating shaft accessories all the year round. The total length of loom accessories F18A is 177.5mm, the outer diameter of the circular head is 38.5mm, the thickness is 8.1mm, the diameter of the front flat part is 21.5mm, the thread flat thickness is 16.5mm, and the material is 45# steel.
The front part of the loom's beating shaft is M20 thread, and the outer diameter of the rear shaft is 21.8mm, which is fixed in the crosshead F16 for rotation. GA615 loom is generally a wide loom, and the number of F18A used by each machine is two (one on the left and one on the right).
The front part of the screw mandrel of F18A picking plate is connected with the picking plate, and it needs to be matched with the picking plate when in use (the hole diameter at the big end of the beating rod is 20.5mm). The package of F18A is 50 pieces/box, and the weight of a single F18A is 522g.
The application scenarios of textile machine steel parts, textile spindles and loom short shaft accessories are relatively unified. If you need to purchase GA615 shuttle board, club shaft, loom spindle and loom accessories, please contact Mr. Yang of Xinda Textile Accessories to discuss cooperation!
