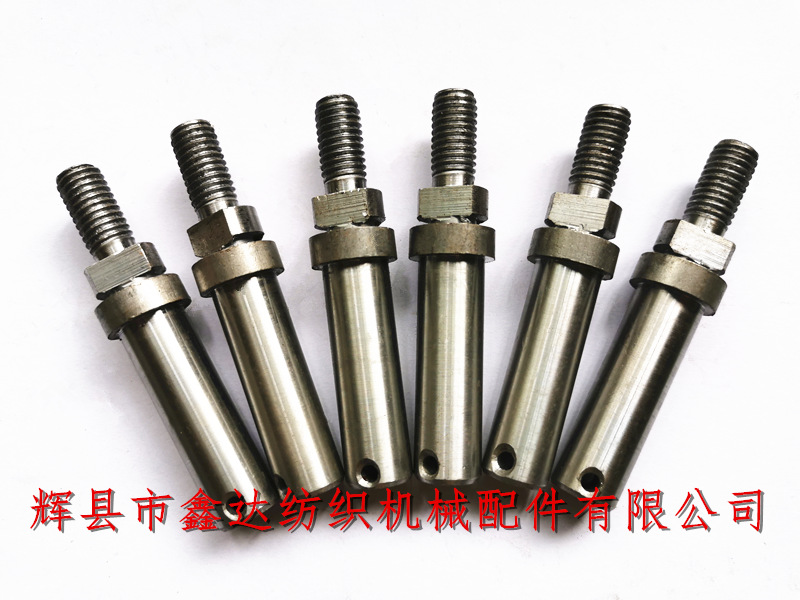

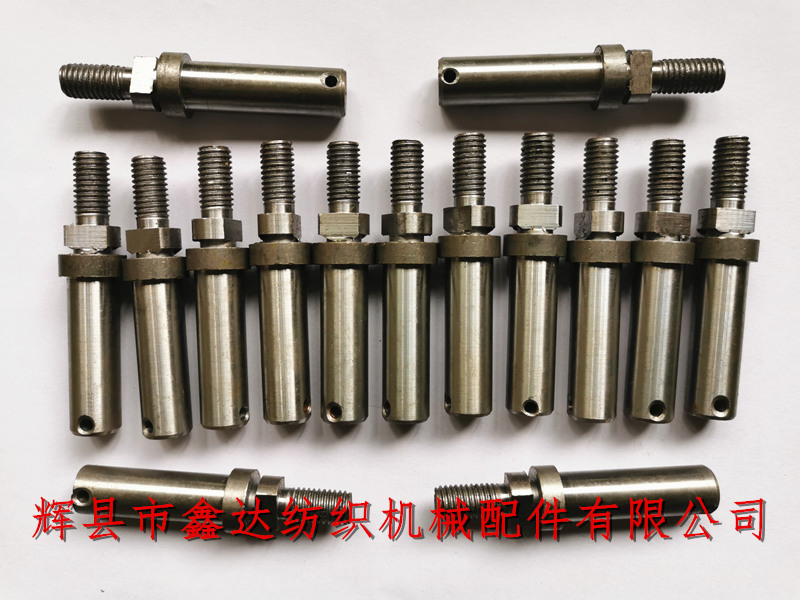

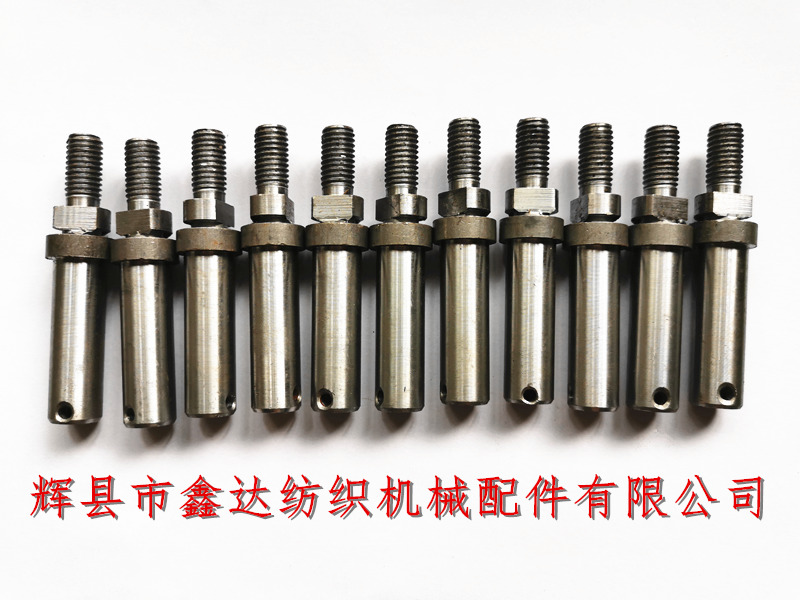

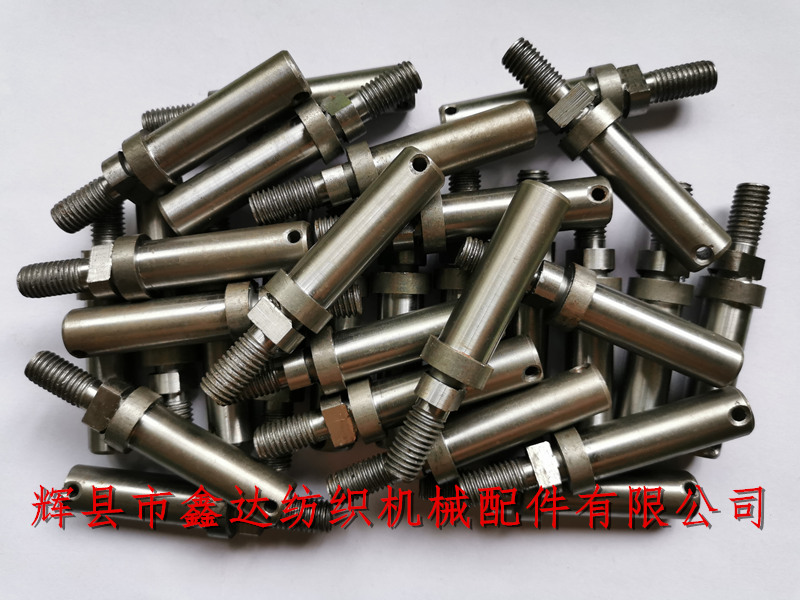

The material of k33 textile short shaft stop button screw mandrel is A3, which is connected with K23 and installed on K21 / K22 textile hanging feet. Each 1511 textile machine uses 2, 1515 and GA615 wide width textile machines use 4. The total length of k33 is 76mm, the diameter is 14mm, and the thread is M10. The short spindle of textile machine is widely used in textile machinery.
The processing requirements of the textile stub shaft: the surface of the short shaft is polished, and the tolerance fit is - 10 wires. The tail of the short shaft of the old traditional shuttle loom has a pin hole, which is used to prevent the K23 stop button from falling off during working.
The front platform is used to clamp the K21 hanging foot and prevent the k33 textile short shaft from rotating. It is installed on the breast beam of loom (1511, 1515 and GA615 are the same). There are many kinds of textile spindles, loom long shafts, loom let back transmission shafts, textile spindles, textile driving shafts, let off shafts, eccentric shafts, reed clamping shafts, stop shafts, treadle shafts, etc. different textile shafts have different uses.
According to the size of the force, their diameters are also different. From the diameter of 42 mm tread plate shaft to 14 mm diameter inclined shaft, less than 12 mm is usually called pin or pin shaft.
Textile short shaft, textile screw, textile mandrel, k33 textile short shaft stop button screw mandrel provided by Xinda Textile machinery accessories, welcome all textile mills to consult purchasing matters!
