Huixian Xinda Textile Machinery Parts Co., Ltd. provides textile hardware accessories, stainless steel wire mesh machine shuttle springs. This type of shuttle spring (also known as shuttle bottom spring) has a smaller shape, a total length of 30mm, a face width of 7mm, a thickness of 1.5mm, an opening depth of 7.8mm, and a distance of 13.5mm from the middle of the groove (fixed steel pin) to the outer side of the rear of the shuttle spring; The size of the bottom spring used in a regular cotton loom shuttle is: the total length is 35.3mm, the face width is 9.2mm, the thickness is 2.1mm, the opening depth is 9mm, and the distance between the middle of the groove and the outer side of the rear of the shuttle spring is 14mm.

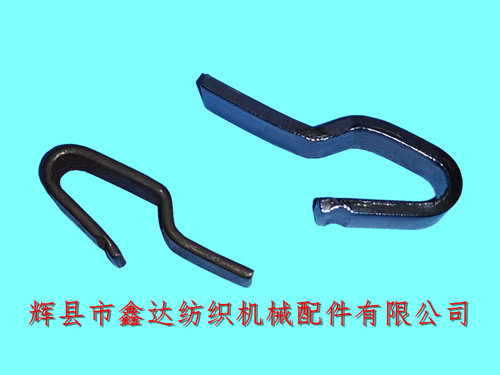

In the above figure, the left side is the small shuttle spring (used for stainless steel wire mesh machine shuttles), and the right side is the large shuttle spring (used for ordinary cotton weaving machine shuttles). The materials of the two are slightly different. Both the small and large shuttle springs are made of spring steel material, which differs in strength and toughness.
The picture above shows a small shuttle spring near the top, and a large shuttle spring near the bottom; The main function of the shuttle bottom spring is to provide good elasticity when the shuttle core is lifted up or pressed down, to quickly reset when replacing the weft tube (filament tube), and to ensure that the tube is level.
The individual weight of the stainless steel wire mesh machine shuttle spring (see above figure) is 4 grams, while the individual weight of the regular shuttle spring is 8 grams. Their packaging is 500 pieces per package, with a minimum order quantity of 100 pieces and a delivery time of 5-8 days.
Shuttle springs, also known as bottom springs, are textile hardware accessories and also belong to the textile equipment category. If textile enterprises need to purchase stainless steel wire mesh machine shuttle springs and other specifications of shuttle spring products, please contact Mr. Yang from "Xinda Textile Machinery Accessories" for consultation! Our company sincerely welcomes the presence of new and old customers both domestically and internationally!
