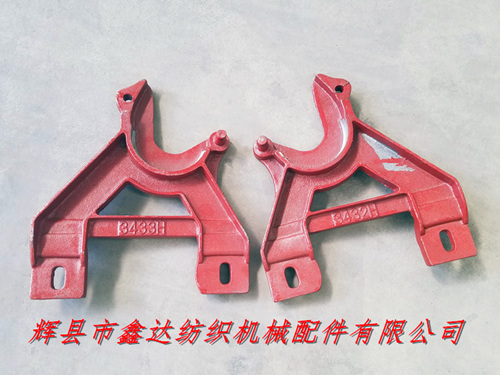

Huixian Xinda Textile Machinery Parts Co., Ltd. has been providing GA615-3432H 3433H Loom Bracket For Yarn Beam weaving shaft support feet for weaving machines for a long time. These Loom Brackets For Yarn Beam are fixed on the wall panels (4301B and 4302B) of GA615 weaving machines, and the distance between the fixing holes (center) connecting the wall panels is 225mm. The material is pig iron+manganese steel (ductile iron, abbreviated as ductile iron), and the color is red;
The inner diameter of the circular hole above the warp support feet 3432H and 3433H is 13mm, and the circular cylinder (diameter 16mm) with a semi-circular arc surface (as shown in the figure below) is used to fix the loom warp hook B10. Each weaving machine uses one of these two types of support feet.
There are three types of warp support feet used in weaving machines, namely B1/B234332B/3433B and 3432H/3433H. The number of teeth coupled to the warp gears is B6 (1511 type 23T), 3429 (25T), and 4114
The above picture is the back view of the warp support foot of the weaving machine. The weight of a single foot is about 3.5KG. If you need to purchase GA615-3432H 3433H warp support foot products for weaving machines, please contact Mr. Yang from our company for consultation.
