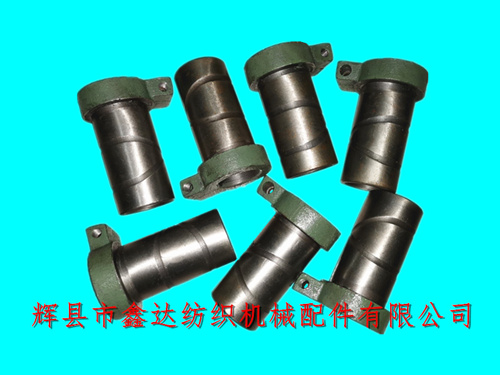

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides shuttle textile accessories_ Buss sleeve E1_ General accessories of loom, loom tread shaft sleeve E1, also known as busi sleeve, is a general part of shuttle loom. The total height of textile tread shaft sleeve E1 is 115mm, the outer diameter of polished cylinder is 52mm, the inner hole diameter is 42mm, the polished surface has oil groove, the base height is 2 cm, the outer diameter is 66mm, the outer width of tightening port is 37.2mm, the incision width is 3mm, the diameter of round hole on one side is 11mm, and the other side is M10 screw hole.
Textile accessories E1 are made of pig iron HT15-33, regardless of left hand and right hand. The number of each loom is 2. They are respectively installed on the wallboards on both sides. The inside is connected with the tread shaft, and the outside is connected with the sleeve P11.
Textile step sleeve E1 is widely used in shuttle loom equipment of models 1511, ga611, 1515, GA615, etc. the cut length on the base of tread shaft sleeve E1 is 3 cm, and the weight of a single E1 step sleeve is about 0.69 kg.
Attention should be paid to the installation and use of textile sleeve E1: 1. The screw is loose, causing constant friction between the sleeve and the shaft and damaging the tread plate shaft. 2. When correcting the flexible rotation and left-right position of the tread plate shaft, pay attention to the relative position of the sleeve and the shuttle rotor when tightening the E1 screws of the sleeves on both sides. 3. The tread plate shaft sleeve E1 is sleeved on the tread plate shaft, and the fit gap between the two is not more than 0.08mm.
If you need to purchase shuttle textile accessories_ Buss sleeve E1_ For general accessories products of looms, or for detailed parameters of textile accessories, Busi sleeves, loom accessories and general accessories, please contact Mr. Yang of our company for details!
