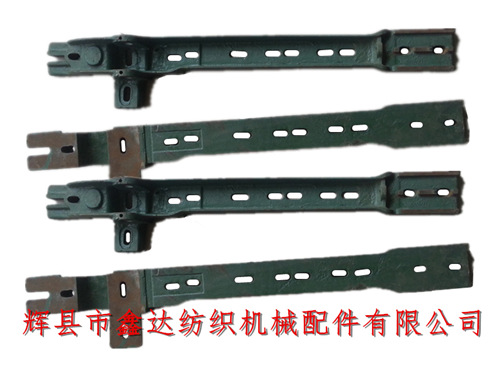

Huixian Xinda Textile machinery accessories provides 1511 textile machine accessories - reed foot K1 / K2 of single beam loom. The reed foot K1 of textile machine is the switch side and K2 is the shuttle changing side, They have the same length (866 mm) and different ears: K1 reed foot is a flat hole, installed with K83 fixed reed frame wood; K2 is a high and low hole, installed with k205 fixed on the other side of the reed frame wood, and the lower part is connected with F22 reed foot and fixed on the rocker, which is suitable for 1511 single beam loom.
1511 the height of the sley feet K1 and K2 is 644.5mm (put the gauge on the rocker shaft F20, and the upper end of the gauge is flush with the shoulder of the sley feet Q1). The difference between the two groups was 1.6 mm and 0.4 mm.
The material of reed foot accessories of textile machine is HT15-33 (gray iron). K3 reed foot is installed under the flat hole, and K4 reed foot is installed under the high and low holes. The weight of single K1 (reed foot) is about 8.05kg.
1511 the upper end of the reed foot is slotted to fix and install the loom reed cap. K1 (flat hole) is divided into left and right hands, K2 (high and low hole) is also divided into left and right hands. The specific identification method depends on the ear direction of the side of the reed foot.
The reed foot of 1511 loom is different from GA615, 1515 and other models. The handle fixing hole on the back of reed foot of wide loom is behind. If you need to purchase reed foot K1 / K2 of 1511 single beam loom, textile reed foot, 1511 reed foot, textile reed foot and other products, please contact our company for details!
