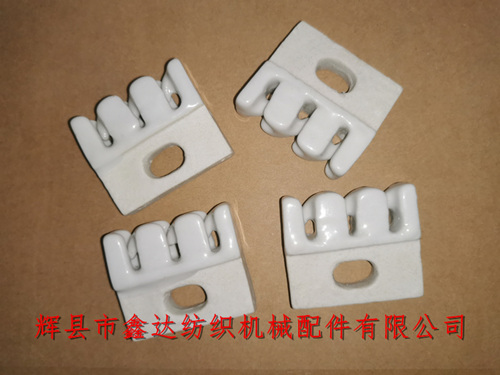

Huixian Xinda Textile Machinery Accessories provides a three tooth comb (porcelain comb/three eye plate) for the yarn frame of the yarn guide porcelain warping machine. The three tooth comb is a white textile ceramic part. The external dimensions of this wire guide are: the total length of the three tooth porcelain comb is 41.5 millimeters, the height is 35.5 millimeters, the thickness of the upper porcelain hook position is 13 millimeters, the thickness of the lower fixing plate is 10mm, the width of the middle fixing hole is 8.3 millimeters, and the length is 13 millimeters. The three eye plate can be used as an auxiliary yarn frame for various types of warping machine equipment. It is fixed on the angle iron of the warping machine yarn frame below, and the warp yarn passes through below the porcelain hook.
The upper enamel height of the three toothed comb is 18 millimeters, and the height of the fixed flat surface without enamel below is 17 millimeters; The depth of the three ceramic hooks is 13 millimeters, the inner width of the middle guide hole is 3.3 millimeters, and the inner height is 5 millimeters.
The packaging of the three toothed ceramic comb is in kraft paper boxes, with 136 pieces per layer (34 pieces per column, for a total of 4 columns), 500 pieces per box, and the weight of a single ceramic comb is 31 grams.Ceramic Comb, Three Eyed Board, Yarn Guide Comb, Warping Machine Accessories, Three Toothed Comb.
The guiding yarn porcelain comb (three eye plate) is made using ordinary ceramic kiln technology, and the position coated with porcelain glaze is used for guiding yarn. It has the advantages of smoothness, wear resistance, etc. However, when the porcelain parts are subjected to excessive force during transportation or use, they are prone to damage; The following is a comparison of three tooth ceramic combs made of ceramic and alumina materials:
If you need to purchase textile porcelain combs, three eye plates, yarn guide combs, warp knitting machine accessories, three tooth combs, yarn guide porcelain parts, warp knitting machine yarn frame three tooth combs (porcelain combs/three eye plates) and other products, please contact our sales staff in a timely manner. Thank you for your support!
