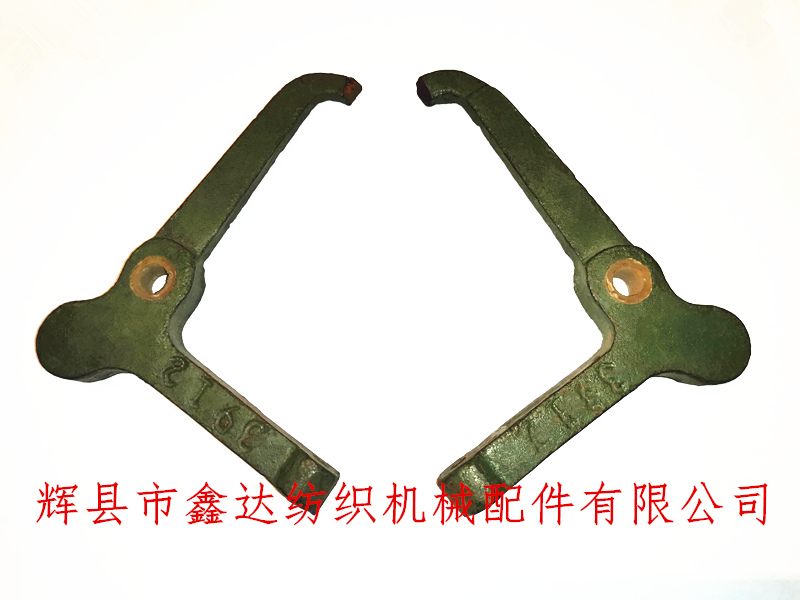

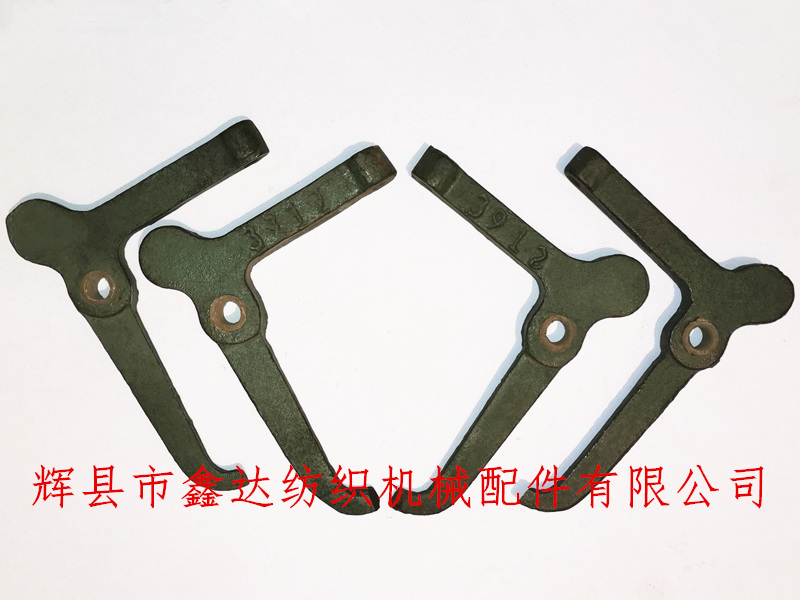

The side brace shear hammer 3900-2 (1515, GA615) is the side brace component of the old loom. Textile Temple Needle Shear Hammer 3900-2,It is composed of 3912 shear hammer body and shaft lining. The side support shear hammer is divided into left and right hand, and is connected with the L47W screw of 3910 side brace cover. The inner diameter of the spindle of the accessory trimmer is 8mm, the tail screw hole is used with M6 bolt, and the distance between the shear hammer and the tail shear hammer is (3-0.5) mm, so it is appropriate to change the shuttle for cutting The length of yarn tail is determined by the enterprise.
The front and rear movement of the side support shear hammer is less than 0.6 mm. The hammering position of the head should be closely connected with the side support box seat 3909. When it is dropped, the side support box seat should be retracted by 0.8 mm. There is no quick opening and the swing is flexible.

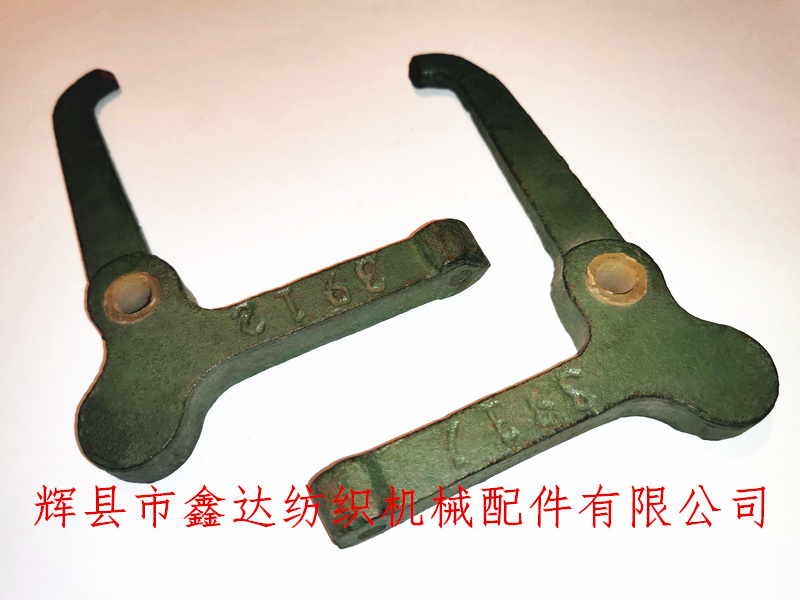

Type 1515 3900-2 side brace shear hammer has a total length of 12.3 cm, a width of 9 cm, and a right angle thickness of 11 mm. The weight of a single shear hammer 3912 is 0.12 kg.
All kinds of shuttle spinning machine accessories, loom yarn tail device parts, 1515 shear hammer accessories, GA615 textile machine side brace parts are basically the same in the use principle of textile machinery and equipment. If you need to purchase or improve the side support components, you can contact our company for related matters.
