Huixian Xinda Textile Machinery Parts Co., Ltd. provides 370 Straight Neck Nylon Shuttle With 3 Eyes. The diameter of the straight neck position of the 200 or 210 weft tube is 20-21mm, the neck height (length) is 10.4mm, and the diameter of the abacus bead below it is 25-25.8mm; The total length of the 370 nylon shuttle for textile equipment is 37 centimeters, the width of the shuttle bottom is 45mm, the height is 35.5mm, the total length of the shuttle cavity is 247 millimeters, and the inner width of the middle position is 31.7mm.
The length of the three pink alumina ceramic eyes varies. Generally, the inner diameter of the 370 shuttle ceramic eye is about 3.3mm, while the diameter of the black iron rod of the shuttle core is 7mm.
370X45X35mm specification nylon shuttle: divided into left-hand shuttle and right-hand shuttle. This shuttle belongs to the extended version of nylon shuttle and is generally used on manual shuttle changing weaving machines.

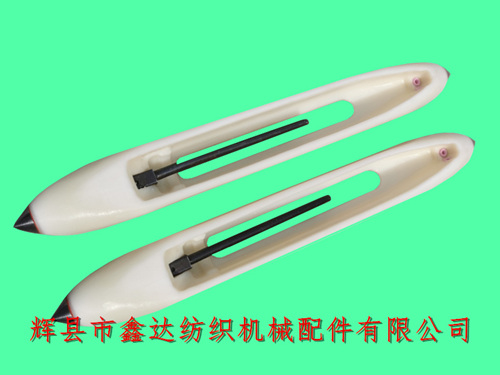

The above picture is a side view of the 370 straight neck nylon shuttle with 3 porcelain eyes weaving machine shuttle. The shuttle core does not have a locking pin or spring plate. The length of the black iron rod is 12 centimeters (excluding the rectangular head), and the weight of a single shuttle is about 357 grams. The packaging is a cardboard box, with 50 pieces per box (same hand). The minimum order quantity is 100 pieces, and the delivery time is 8-10 days. The color of the straight neck shuttle is white or light yellow.
The above picture is a photo of the side and back of the shuttle, with no weft probing holes on the side of the shuttle. If you need to purchase weaving machine nylon shuttle, shuttle, weaving machine shuttle, textile equipment, 370 straight neck shuttle, please contact Mr. Yang from our company for more information.
