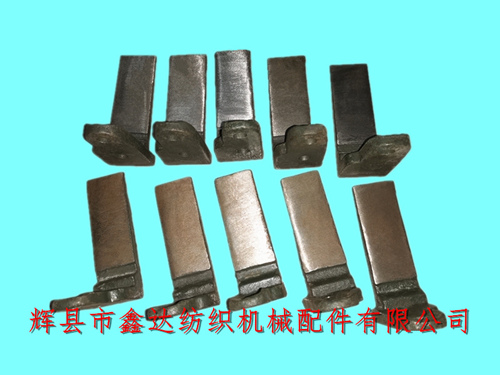

Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided shuttle loom accessories 1511/1515 type supporting feet N17 shuttle feet (inner side). The material of loom supporting feet-N17 shuttle feet is pig iron HT15-32, with a total length of 10cm, a width of 38mm and a height of 67mm; The length of the light plane at the bottom of the textile bracket-N17 is 73mm and the width is 30.5mm; The N17 shuttle magazine foot is divided into a left mobile phone and a right-hand car. It is a shuttle loom accessory, which can be borrowed from each other on models 1511, 1515 and GA615 looms (General accessories).
The included angle between the shed feet N17 and the shed feet N15 is 93.5 degrees, and the tolerance is allowed to be ± 0.1mm. The straightedge corrects that the two feet (N16, N17) are in a straight line, and the error does not exceed 0.05mm. The thickness in the middle of n17 polished surface is 7.8mm, the crankshaft (loom bending shaft) is dead center in the front, and the distance from the shuttle box bottom plate 3308 or K15 is 1.6mm.
Shuttle loom generally refers to the mechanical equipment that relies on the shuttle as the carrier for weft insertion weaving. Its models are mainly 1511, GA611, 1515, GA615, 1515K, etc. The main body of the shuttle loom is made of pig iron by sanding and casting. The machine produces a variety of specifications according to the width of the woven fabric. Its structure is stable, and it is widely used in the domestic and foreign textile machinery markets.
The width of the loom ranges from 28 inches, 32 inches, 36 inches, 42 inches, 44 inches, 52 inches, 54 inches, 56 inches, 63 inches, 72 inches, 75 inches, 100 inches, 110 inches (2.8 meters). Their standard configurations are equipped with automatic shuttle changing devices.Supporting Feet,1511 Loom Feet,1515 Loom Feet,Shuttle Loom Parts.
The packing method of N17 of 1511/1515 shuttle hangar feet: 20 in each string, and the weight of a single supporting foot is about 0.25 kg; If you need to buy 1515 loom feet, GA615 shuttle feet, 1511 feet, loom accessories, please consult Mr. Yang of Xinda Textile accessories for details!
