Huixian Xinda Textile Machinery Parts Co., Ltd. has long provided Pu brake lining 911327271Swiss loom Parts,back Brake Lining, shuttle brake parts. The small shuttle leather has a square shape, color: orange, and material: cow tendon. Swiss Loom Accessories - The outer width of the upper part of the shuttle leather is 28.6mm, the outer width of the lower part is 28.62mm, the outer width of the lower part is 25.5mm, and the outer width of the upper part is 24.2mm. The total height of the PU shuttle leather (911327271) is 13.3mm.

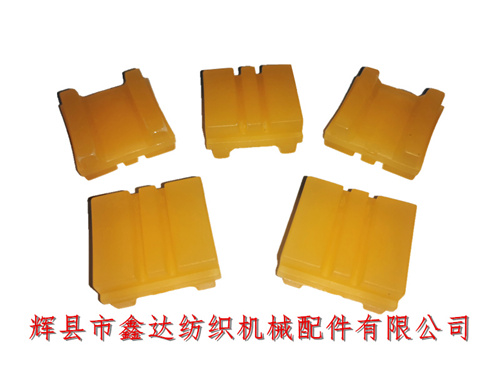

The front and back sides of the shuttle leather produced by the projectile loom 911327271 are shown in the above figure. From the right side of the figure, it can be seen that its thickness is divided into three layers (bottom U-shaped groove, middle spacing block, and upper strip block). The outer width of the bottom U-shaped groove is 25.3mm, the inner width is 14.8mm, the height of the two sides of the U-shaped groove is 5mm, and the thickness of the middle spacing block is 3mm.
The above image shows various angles of PU shuttle leather, with two straight grooves with an inner width of 2.3mm on the upper surface,Swiss Loom Parts . The three separated flat surfaces have widths of 9.4mm, 4.3mm, and 9.4mm, respectively. The weight of a single shuttle leather (911 327 271, used on PU D1 shuttle machine) is 9 grams, with a minimum order quantity of 30 pieces.
The above picture shows the combination of shuttle skins used on the PU type projectile loom: 3 long shuttle skins, 2 medium shuttle skins, and 2 small shuttle skins. They are used in a quantity of 1 each on the projectile loom. If a customer needs to purchase textile shuttle skins, Swiss looms, loom accessories, shuttle, brake components, and other products, please negotiate cooperation with Mr. Yang from our company.
