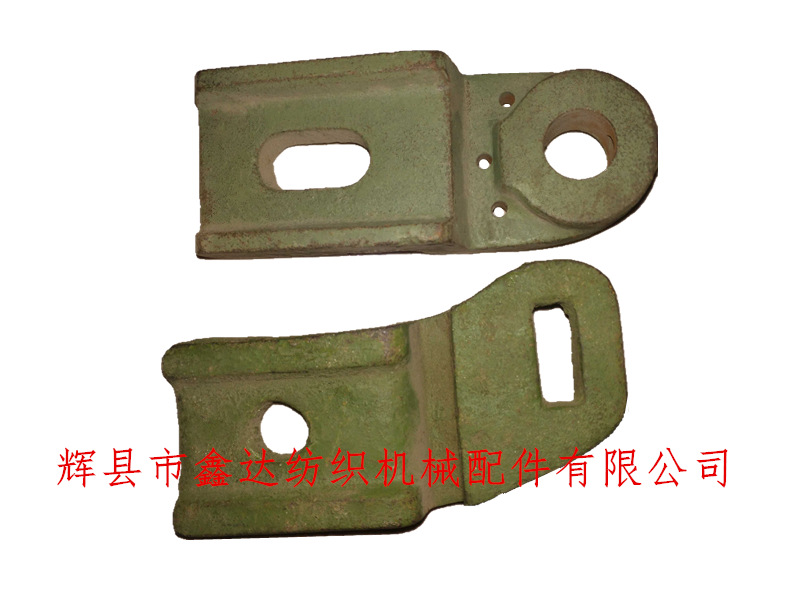

Xinda Textile accessories provide v-bar and joint bar hanging feet,V-Shaped Bar Hanging Foot of Loom,1511m O10 (Bracket for combined lever)joint bar hanging feet, 1515k weaving machine v-bar hanging feet I21(Bracket for V Shape lever), the product is fixed on the weaving machine wall P2 or 4302, used for the starting and breaking stop device of the weaving machine, the inner hole of I21 is 18mm, the center of the axle hole is 105mm from the bottom edge, each weaving machine uses one, the joint bar hanging feet O10 points left and right hands.

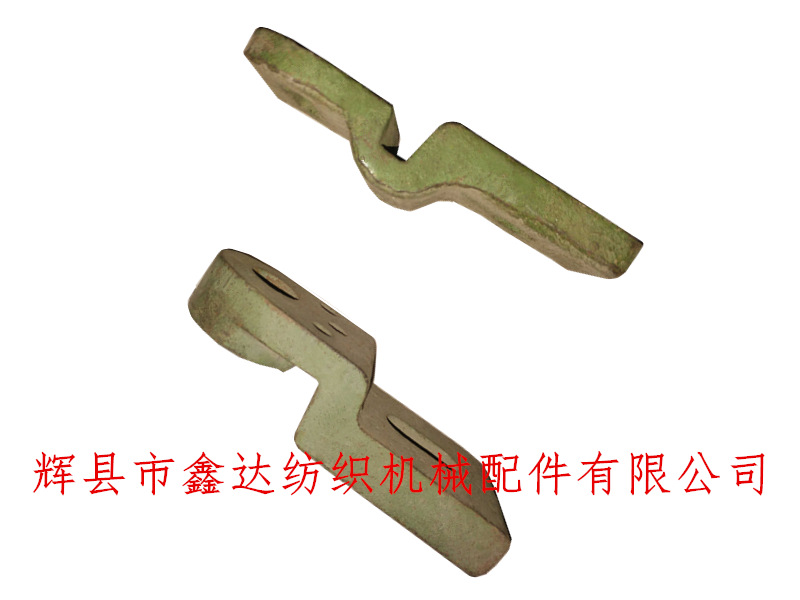

The three holes on the V-bar hanger foot of I21 loom are used to fix the I25 spring. The outer diameter of the spring is 36mm and the diameter of the steel wire is 3mm. It is connected with the loom I15V.

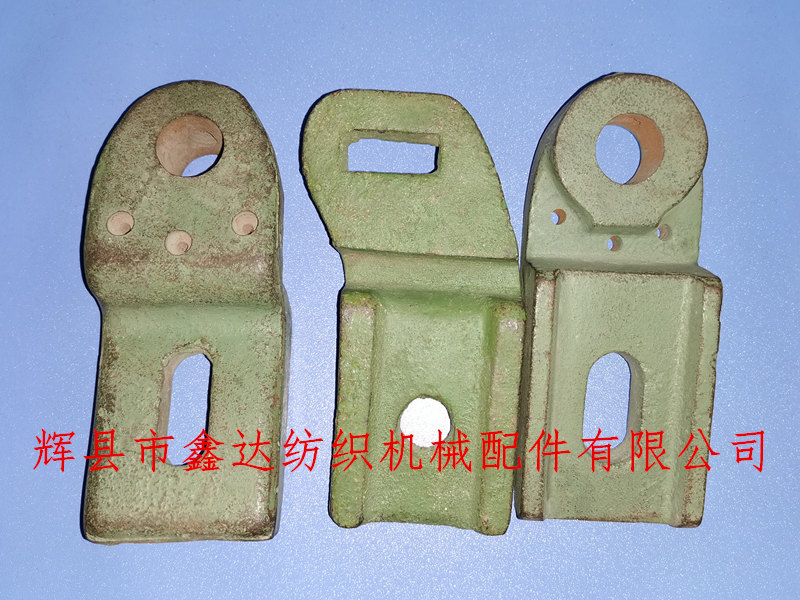

In their side view, the screw fixing holes are different. O10 is the carriage screw fixed in the opposite direction on the wall, the nut is pressed to hang the foot, while I21 is the screw fixed in the positive direction, and the shaft hole is fixed by I24V(Pin For V Shape Lever) rod with bolts together with I15(V Shape Lever).
Packaging method: 10 pieces/bundle, weight about 0.5KG, starting order quantity: more than 10 pieces. The product belongs to the starting parts, braking parts, breaking and stopping parts of loom. When installing, check whether the plane is flat. If there is a concave, it should be ground flat. The lower end should be 3mm from the root of sector arm B46, hanging feet, V-shaped rod, and the connecting rod are even and tightly connected.
