Huixian Xinda Textile Machinery Accessories Co., Ltd. has long customized all kinds of 15.5-inch wood shuttle three bread red steel paper shuttle (three porcelain eyes). The length of the shuttle is 39 cm. TEXTILE WOODEN PARTS,The bottom plate and two sides of the wood shuttle are coated with red steel paper, which is used to increase the wear resistance of the product. The three porcelain eyes and blocking thread are designed to increase the weft resistance and reduce the occurrence of weft shrinkage. The outer width of the shuttle is 45 mm and the height is 35 mm, which is suitable for towel Loom, flat silk loom, etc.
The shuttle core adopts a single rod design, without spring leaf, and the weft groove adopts a thin neck, which is suitable for the use of plastic bobbins with an inner hole diameter of 8mm. The length of the supporting weft tubes is 20-21cm, and the weight of a single wooden shuttle is about 0.45kg, with 50 pieces per box.
The stop pin at the front end of the shuttle is mainly used to lift the weft yarn and reduce the hairiness of cotton yarn. The starting quantity of wooden shuttle is more than 300 pieces of the same specification, and the delivery time is about 50-60 days. The picture above shows the finished product. Due to the light, environment and other reasons, the real product will be slightly different from the picture.
The front face and weft insertion groove surface of the 15.5-inch (390mm) red steel paper wooden shuttle are as shown in the figure above. The shuttle body has smooth shape and low flight resistance. The red steel paper laminating technology is added to the three surfaces to greatly extend its service life. It can be applied to 1511, 1515 and other types of door width looms.

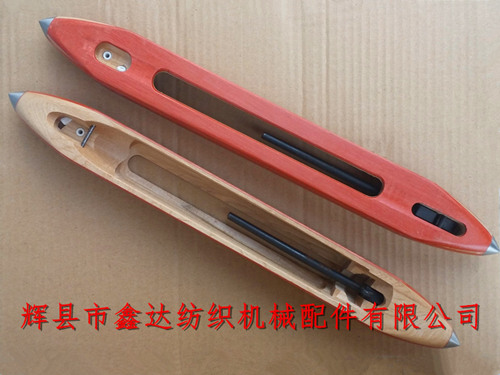

On the left is the customer sample (no red coated steel paper). In the production process of the product, we insist on strictly adjusting the equipment processing according to the parameters of the customer sample, so that there is no difference between the sample and the finished product. Textile accessories products - 15.5 inch wood shuttle three bread red steel paper shuttle (three porcelain eyes) can also be used in other special fabric weaving, customers need to customize 15.5 wood shuttle, red steel paper shuttle, wood shuttle and other products, please contact our company!
