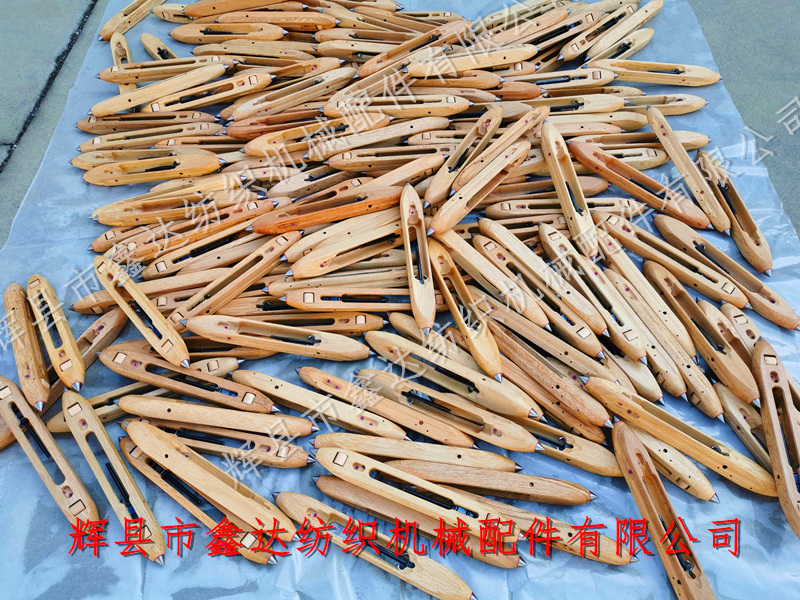

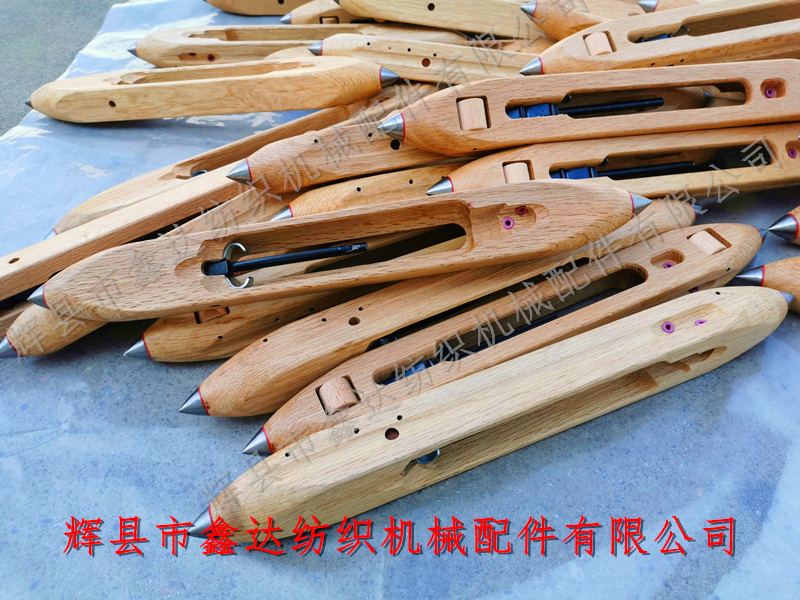

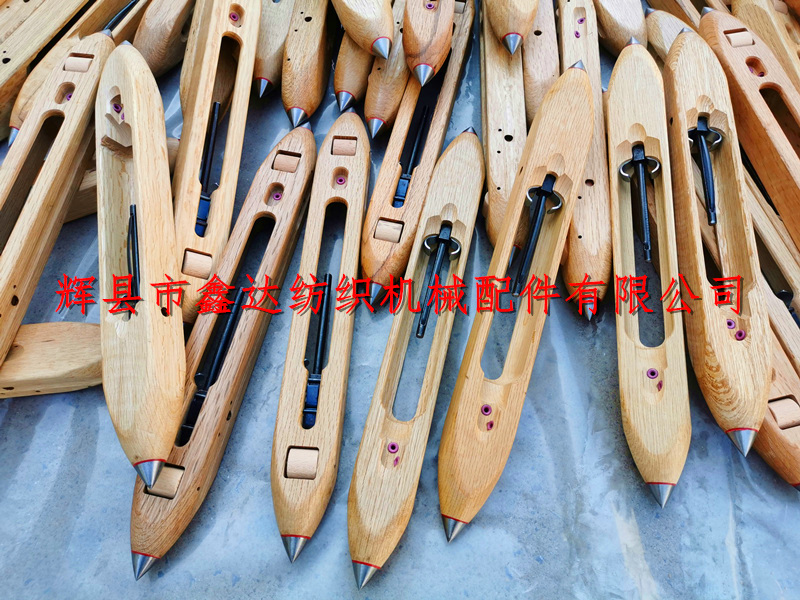

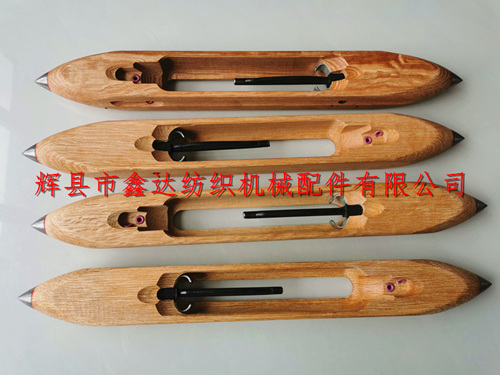

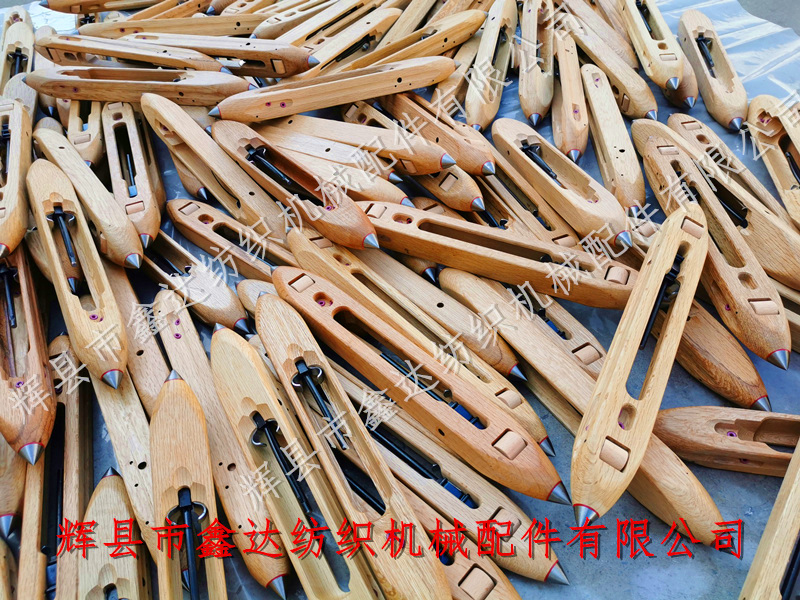

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides 430*48*36mm pulley wooden shuttles (Cyclobalanopsis semicircle clamp type). The total length of the clamp pulley shuttles is 430mm, the outer width of the bottom is 48mm, and the total height is 36mm. The inner length of the shuttle bottom chute (including the chute with a length of 46.5mm and an inner width of 11mm below the shuttle core) is 211mm, and the inner width of the middle position of the chute is 19.
There are three porcelain eyes on this pulley shuttle, which are made of alumina and purple in color; The inner width of the notch of the semi-circular pliers is 15.5 mm, the inner width of the middle of the two semi-circles is 28.5 mm, the pliers are made of A3 galvanized steel, and the reed of the bobbin is 3.4mm in width and 84 mm in length.Hand-loom Shuttle,Home Pulley Shuttle,Wood Shuttle,XinDa Semicircle Clamp Shuttle,Textile Wooden Parts.
The total length of the shuttle cavity of Cyclobalanopsis wood pulley shuttle is 224 mm, the length above the long square head of the shuttle core is 16 mm, the length of the middle effective use (for installing the hose) is 166mm, and the straight length of the buffer slope is 24 mm.
The depth of the step where the porcelain eye is installed is 11.7 mm, and the inner width is 12.5mm；; 430*48*36mm Pulley Wooden Shuttle (Cyclobalanopsis) The square groove at the bottom of the shuttle for installing pulleys is 24mm in length, 23.7mm in width and 20mm in depth.
This Cyclobalanopsis wooden pulley wooden shuttle is packed in cartons, each containing 42 pieces. The weight of a single shuttle is 462 grams, which is 96 grams lighter than that of a compressed wooden shuttle. This shuttle is generally right-handed, with an order quantity of 300 pieces and a delivery period of about 45 days. If you need to purchase textile accessories such as loom shuttles, pulley shuttles, Cyclobalanopsis shuttles and pliers shuttles, please contact Mr. Yang of our company.
