Huixian Xinda Textile Machinery Accessories Co., Ltd. provides shuttle spinning machine accessories, loom winding roller support rod L16/5102, textile support rod support foot L16W is suitable for 1511 and 1515 looms, 1515w-5102 winding roller support rod is suitable for GA615 loom equipment, and they are all connected with L14 and L15 support rod feet. The total length of L16W is 302mm, the width is 67mm, the height is 44mm, and the diameter of shaft hole is 10mm. Install L42 pin bolt to fix the support foot hook of L12 cloth roll.

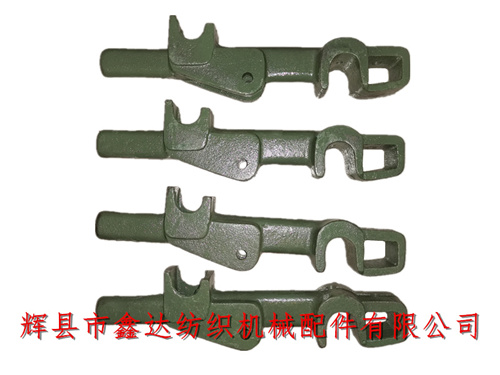

The above figure is the side view of L16W cloth roll support rod. From left to right, Q20 cloth roll mesh bearing is installed in the left groove, and L12 cloth roll hook is installed below. Weaving winding roller support rod L16/5102,The downward groove is fixed above L14 or L15, and there are M10 screw holes above the tail to fix R35 (cloth roll support rod adhesive tape).
The single weight of l16w, a cast iron accessory of textile machine - cloth roll support rod, is 1.7kg. Two pieces are used for each loom, which are respectively at the left and right front of the loom. They belong to cloth winding accessories in the coiling device. The total length of 1515w-5102 accessories is 33cm and the material is HT15-33.
Textile machine accessories loom winding roller support rod L16/5102 is a kind of textile accessories. Textile accessories include textile machine accessories and loom accessories, 1515 textile machine accessories, 1511 winding roller, 56 loom accessories, 75 domestic suppliers of shuttle loom winding parts - Huixian Xinda Textile machinery accessories. We sincerely welcome you!
