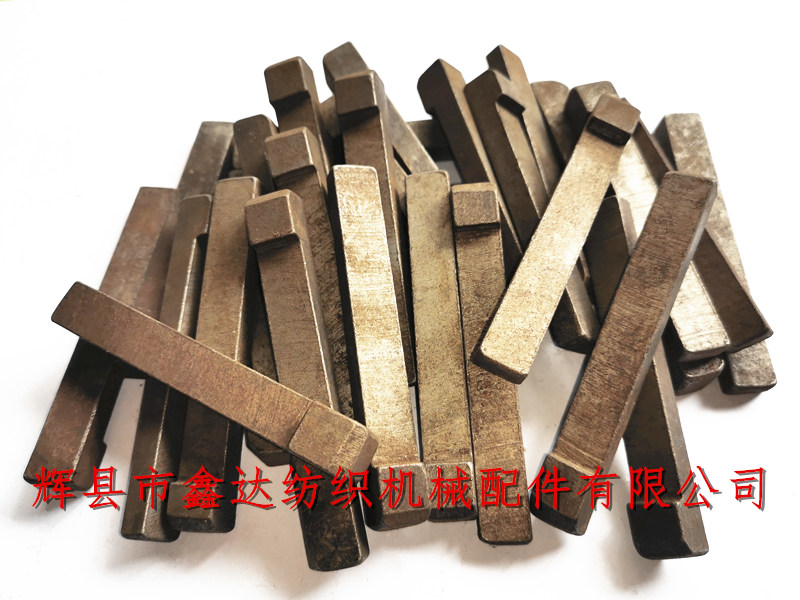

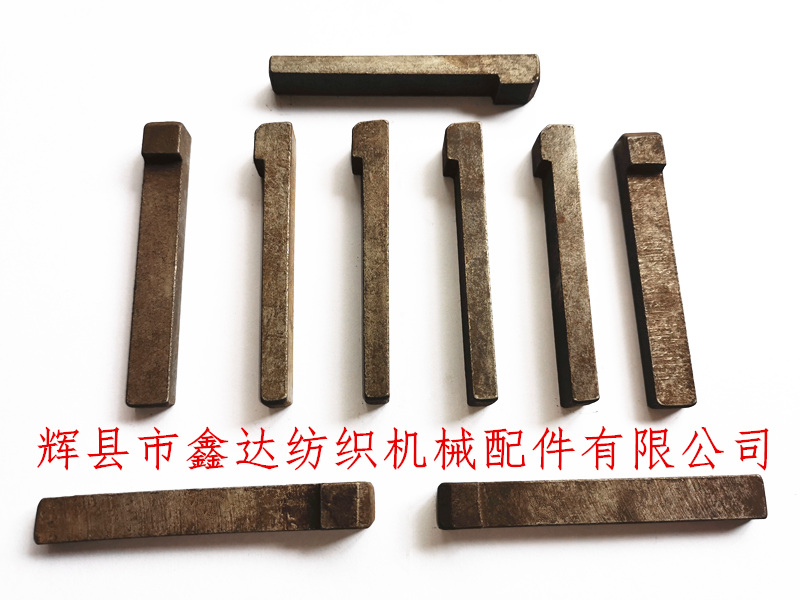

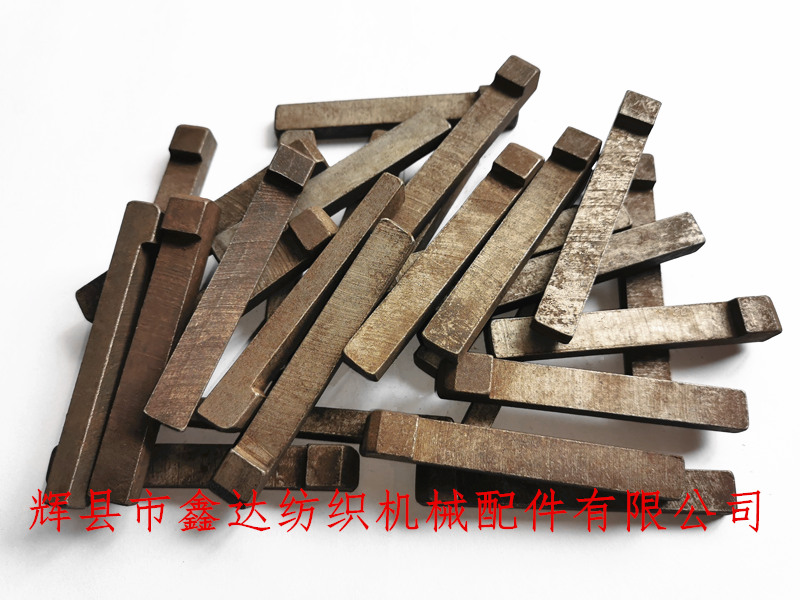

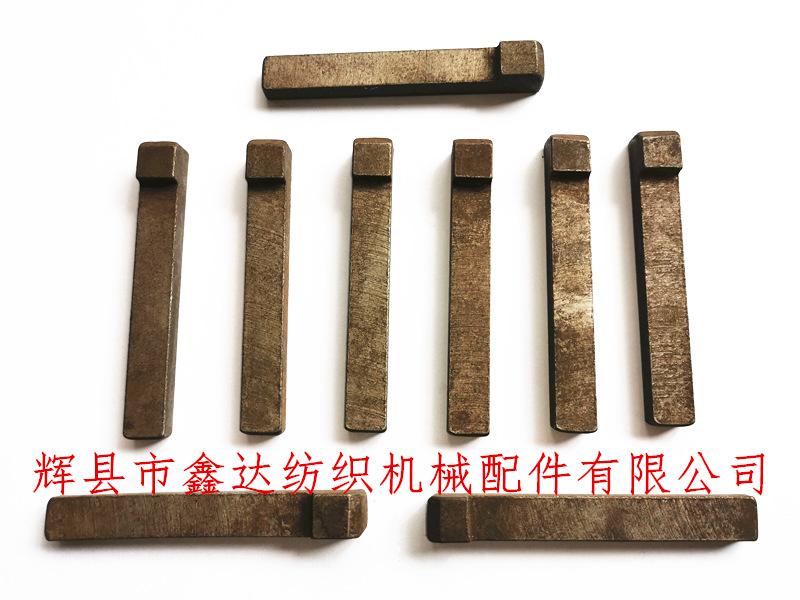

E8 hook head key old loom parts can be used in 1511, 1515, GA615, 1515k and other door width machines. It is mainly used to fix the 72 tooth treadmill shaft gear E2. The width of the hook head key pin is 12 mm, the front thickness is 7.4 mm, the hook head thickness is 12 mm, and the length of the hook head key is 89 mm. The key pin plane is in a slope shape. The textile key nail can be used for various textile machinery equipment gears, belts and pulleys Installation of combiner.
There are 72 teeth tread plate gear and motor motor wheel D4 (N11 hook key is used) where the hook head key pin is used in the old loom. Each loom uses one hook head key, and their installation requirements and steps are the same,E8 Hook Head Key Pin, Part Of Old Loom.
When the E8 key pin needs to be removed, the key puller of textile tool is used to take it out. When it is difficult to pull the key pin with the key extractor, knock the E2 inward to make the pin (hook key pin) loose, and then pull it out with 72 tooth puller. If it still can't be disassembled, it can be pulled out by tapping and pulling at the same time. After the above work still can not be removed, the whole set can be removed for treatment.
Installation method of old loom part E8 hook head key: check accessories 72 teeth key Xiao E8, put 72 teeth on the shaft, push the hook head key nail by hand, which should reach 1 / 3 of the total length of the key pin, and then knock it with a small hammer. The inner side of hook head should be exposed 9.5-25 mm, and then pull out the hook head key pin. It is good to see that the contact surface distribution reaches more than 50%, and the angle of key nail is consistent with that of other parts.
If you need to purchase loom hook head key pin, please contact our company for details of accessories parameters and supply cycle. Xinda provides old loom parts hook head key pin processing, old hook head key, 1515 shuttle loom parts yuan lathe processing business.
