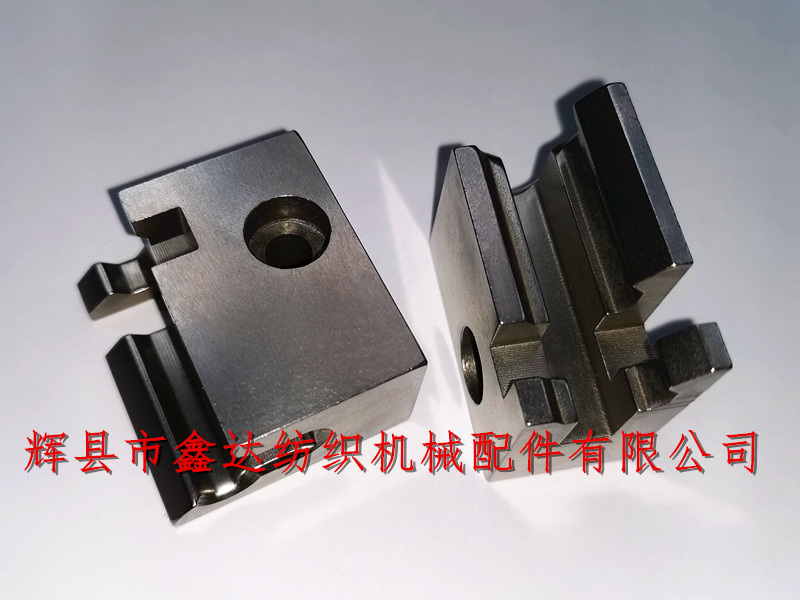

Xinda Textile machinery accessories specializes in providing spinning machine accessories PU D1 Guide Block, single color weft Guide Insert 911116162. The detailed parameters of the shuttles are: height 36mm and 26mm, length 39.3mm, thickness 21mm, width of the middle groove 7.2mm, width of the gap 7.2mm, diameter of the small hole 6.6mm, diameter of the large hole 11mm. The product belongs to spinning machine accessories and is applied to Pu D1 Guide Block.
The front groove is 6.6mm deep and the rear groove is 16.5mm deep. The surface gloss of the shed product is good and the processing technology is mature.

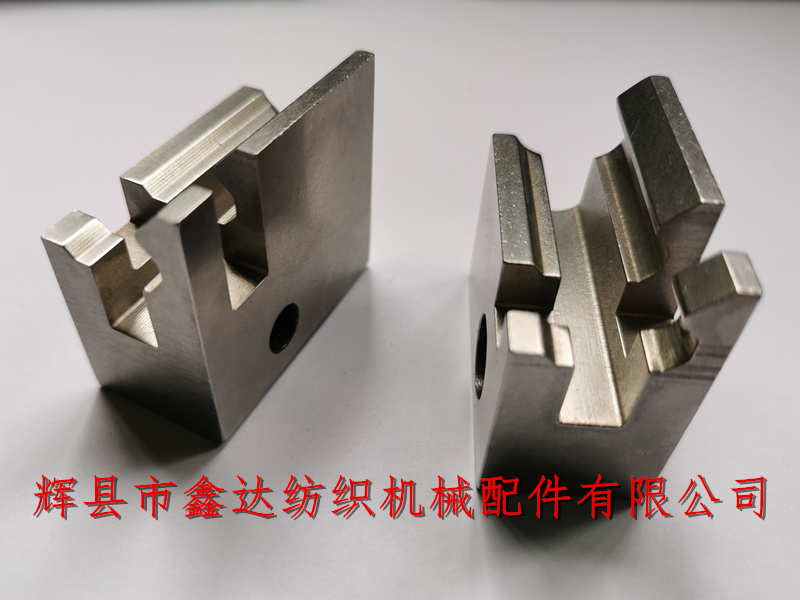

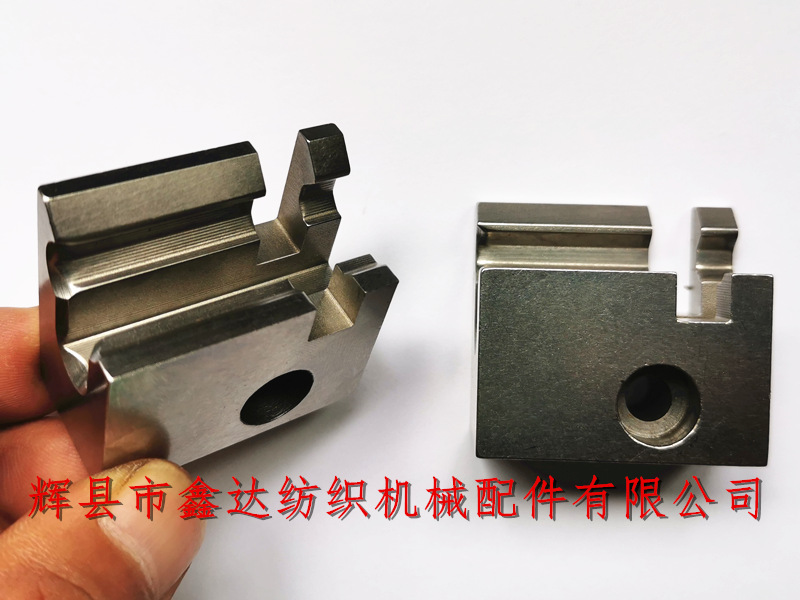

Side and back of pu-d1 single color shed. At the same time, we also provide various types of spindle shed accessories such as mixed weft shed, P7100 shed, etc.

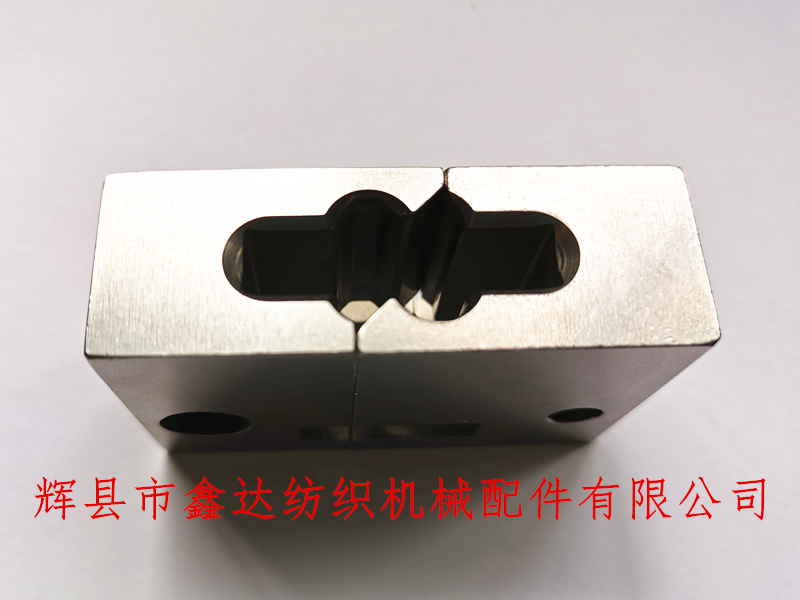

Assembly drawing of shuttle opening horizontal and vertical. Please contact our company for more pictures and purchasing information about the price, wholesale and purchase of the shed.
A picture of two shuttles together.

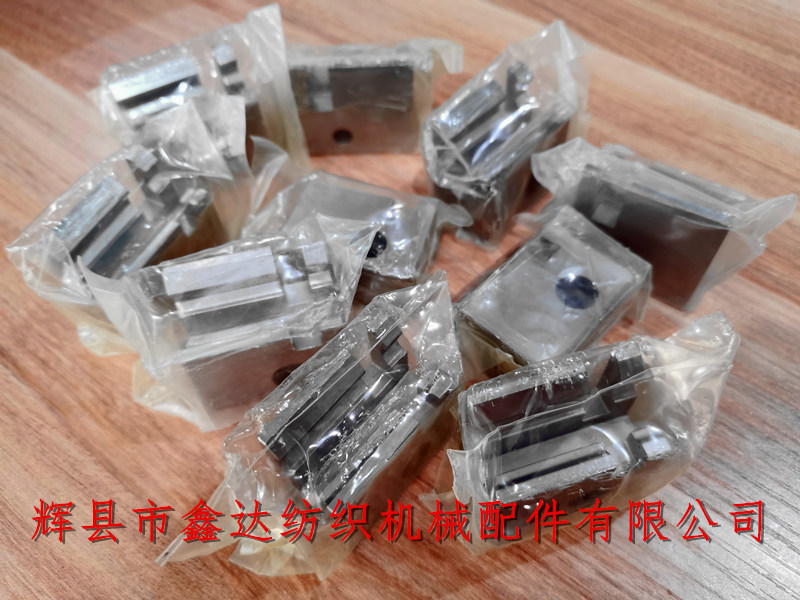

Package photo of shed. Please be informed that there are 100 pcs in each case and 10 pcs in the initial order quantity. The payment will arrive by default and the shipment will be made at the appointed time. Suokou factory, textile machinery parts supplier, piansuokou wholesale - Huixian Xinda Textile Machinery Parts Co., Ltd.
