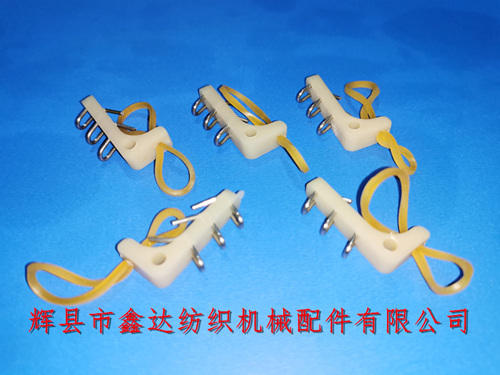

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides fiberglass textile accessories for weaving machine shuttles (three eye live bell), which are made of stainless steel wire and nylon injection molding. The total height of nylon live is 30mm, the width of the rear plastic position is 14mm, and the overall width is 21mm (including three eye stainless steel wire). The inner diameter of the pin screw hole is 3.6mm, and the total thickness of stainless steel live is 7mm.
The Three Eye Flexible adopts a stainless steel wire bending design with a diameter of 1.1mm, with an inner cavity width of 3mm. The inner cavity length of the Three Eye Steel Wire is 5mm, and the spacing between adjacent two steel wires is 6.3mm. The three eye loop is an accessory product of fiberglass textile accessories, often used for weaving fabric products with fragile weft yarns and high weft elasticity. The surface of stainless steel wire is smooth and resistance free, and the elastic expansion and contraction of the tail rubber band control the angle between the tilt and the steel needle of the shuttle. Therefore, during the weft insertion process, it coordinates with the shuttle movement to balance the weft tension, achieving the effect of reducing weft shrinkage and strengthening the uniform weft tension.
There are various models and specifications of flexible materials used in shuttles, including ceramic ring type red steel paper flexible materials and nylon flexible materials, and stainless steel wire nylon flexible materials (three or four eyes). This stainless steel flexible material is suitable for fiberglass shuttles and is generally used on nylon shuttles. Fiberglass wooden shuttles generally use red steel paper flexible materials.Fiberglass Parts,Live Bell,Textile Parts,Shuttle Spare Parts.
The weight of a single stainless steel wire nylon flexible is about 2.7 grams (including rubber bands), with a minimum order quantity of 100 pieces and a delivery time of 5-8 days. Fiberglass is flexible and not affected by the left and right hands of the shuttle. They can adjust the tilt direction when they are compatible with the loom shuttle.
