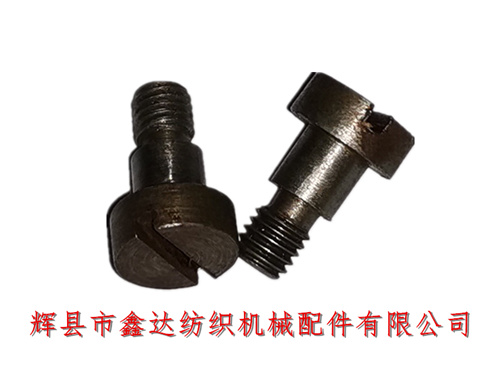

Huixian Xinda Textile Accessories Co., Ltd. has long provided a connecting core for weaving machine parts for weaving machine J35 (Connecting Stud For Loom Limitting Wire) imperial iron wire. The material of weaving machine parts J35 is 45 # steel, with a total height of 16 mm. The diameter of the round table at the upper slotted part is 10 mm, with a thickness of 4 mm. The diameter of the round step at the neck is 6 mm, with a length of 5.5 mm. The front thread is M5, with a thread length of 5 mm. The connecting core for J35 imperial iron wire is connected to the 3335 imperial rod for use, The number of J35 cores used on each loom is 1 pcs.
The connecting core J35 of the weaving machine's iron wire is fixed to the J36 control lever arm after passing through 3335. It is a probe inducing device component that corrects the time between the cross spindle and the spindle hook. When the shuttle is on the switch side, turn the crank of the bending shaft to the front center, adjust the front and rear positions of the fastening rings on the sleeve support J21, or adjust the front and rear positions of the spindle hook J28, so that there is a 0.8mm gap between the cross spindle J22 and the spindle hook J28.
The inner width of the slotted groove of the textile accessory J35 system connecting core is 1.5mm, and the depth is 2mm. The use of slotted round head pins on loom equipment is relatively common. The design of such loom accessories has the characteristics of convenient installation and disassembly.
The weight of a single textile machine component J35 (Connecting Stud For Loom Limitting Wire) is about 5 grams, and the packaging is a self sealing bag with 100 pieces per bag. If you need to purchase accessories such as textile pins, loom Connecting Stud J35, shuttle loom spindles, and textile small steel parts, please contact our company's Mr. Yang for consultation! Welcome!
