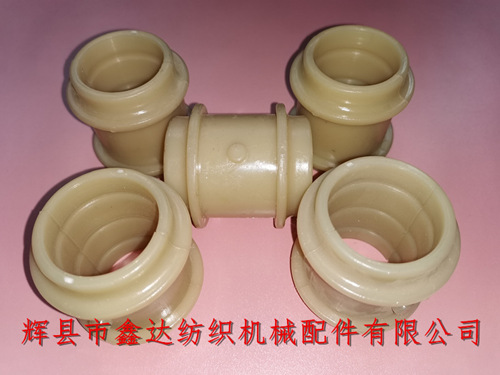

K77xk78 nylon sleeve is mainly used for 1511 metric domestic loom equipment, 1515 model uses 3207 * 3208 nylon sleeve, their product name is hand bushing, instead of the original loom copper sleeve, it is composed of two semicircular bearings, which are easy to install, light in texture and wear-resistant.

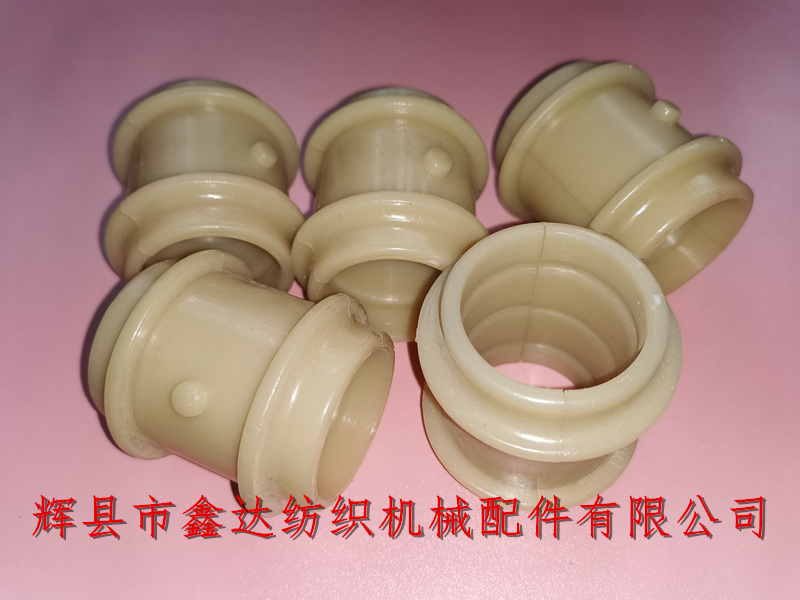

The clip on the side of nylon bearing bush is installed in the slot of k00-1 handle assembly to prevent the nylon bearing bush from rotating along with the crank shaft of the loom. This design can reduce wear. When installing the nylon bearing bush, an oil hole should be processed according to the actual situation, so as to add oil. The reason why nylon bearing bush replaces copper sleeve is that it is of high quality and low price, which can reduce the weaving cost.

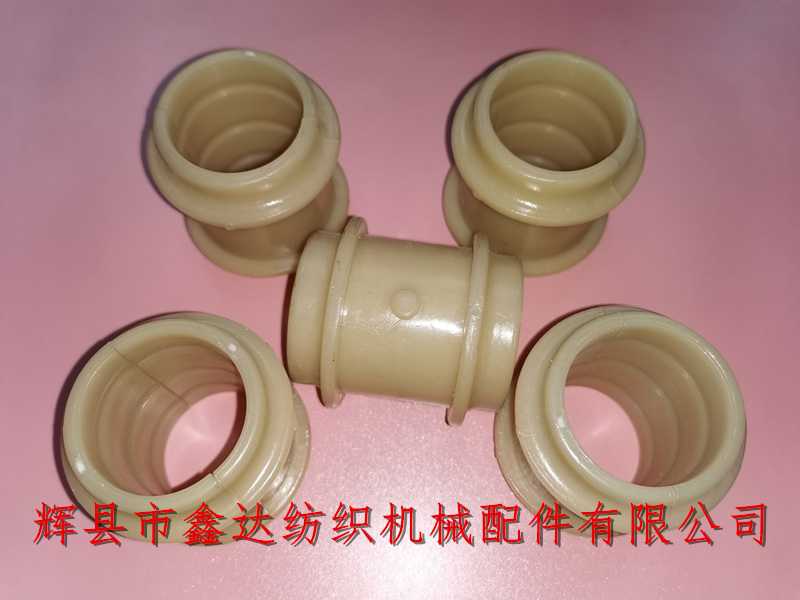

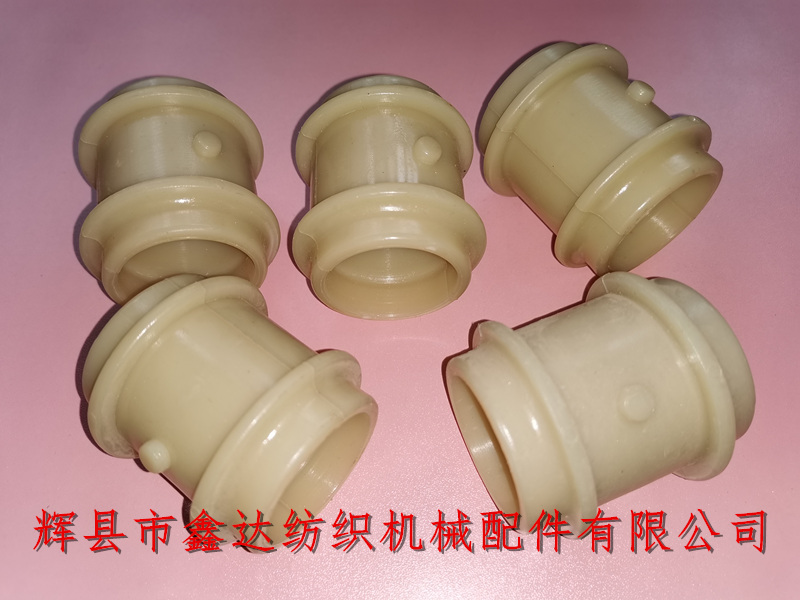

There are three circles of grooves in the inner hole of nylon bearing bush of old cloth machine. It is the oil filling groove to ensure that the oil can flow smoothly to the contact surface of bending shaft. The inner hole diameter of k77 * k78 used by 1511 loom is 38mm, that of 1515 and GA615 is 40mm, and that of special specification is 42mm or 45mm. The nylon bushing Bush is not distinguished by loom door width, because there are two types of loom with 56 inch door width - 1511 single beam and 1515, GA615 double beam. The picture below shows the top view of textile nylon bearing bush.
Textile enterprises, cotton processing plants, if you need to purchase nylon bearing bush, bush sleeve, textile copper sleeve and other products, please contact Mr. Yang of our company for consultation, we will serve you wholeheartedly!
