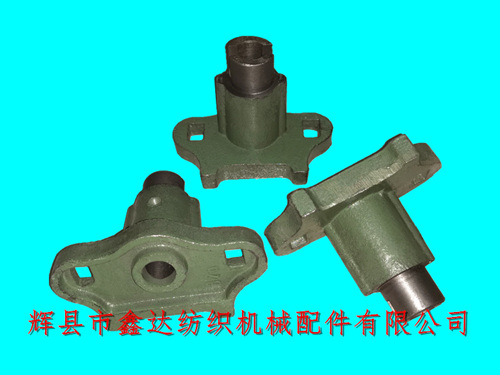

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1511/1515 internal let off accessories B26 loom saw gear support feet. Because the loom support feet and let off saw gear are installed on the friction saw wheel shaft B12 together, it is named as saw gear support feet. The B26 saw gear support feet are made of HT15-32 pig iron. Overall dimensions: height is 103 mm, base length is 14 cm, width is 81mm, and middle inner hole diameter is 22mm, The outer diameter of the upper polished surface is 35mm, the slotting width is 11.6mm, and the depth is 18.5mm.
The slotting of the B26 supporting foot of the inner let off fitting catches the extended chuck of the B21 brake disc, and the gap between the two should not exceed 0.6mm, and the gap between the B26 shaft hole and the inner let off saw gear shaft B12 should be less than 0.4mm.
The thickness of loom accessories B26 base is 18.5mm, and the size of rectangular holes fixed on the loom wallboard on both sides is: inner length 18mm, inner width 14mm; There is an inner hole with a diameter of 5mm next to the front slot, which is used to install B61 brake disc spring.
The weight of a single B26 saw gear support foot is about 1.2kg. Installation requirements: the base of the saw gear support foot B26 fits closely with the wallboard P1 or 4301, and the center of the middle hole needs to be horizontal, the oil filling hole on the back faces up, and the friction saw wheel shaft B12 rotates flexibly after penetrating.
The saw gear support foot is suitable for 1511 and 1515 looms with internal let off device, which can be used for looms with different door widths,Internal Let Off B26 Loom Saw Gear Foot. Its package is 5 pcs/string, and the minimum order quantity is 50. If you need to purchase 1511 accessories, inner let off accessories, 1515 Shuttle Loom Parts, loom feet and other products, please contact Mr. Yang of our company!
