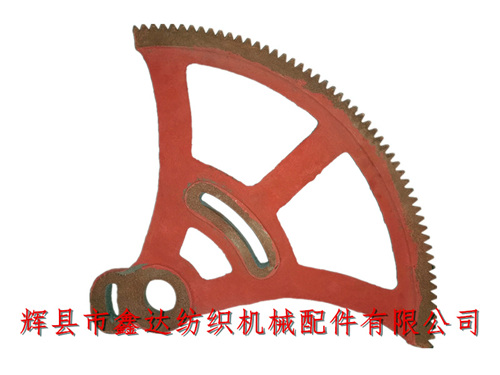

Our company provides Handan Cloth Plaiting Machine Sector gear, 52T sector gear. The gear is a kind of textile accessories, which is mainly used to control the reciprocating range of the Cloth Plaiting Machine in the code cloth process. The material is cast iron, the effective number of teeth is 50 teeth, the inner hole diameter of textile auxiliary machinery code cloth machine parts (sector gear) is 48mm, the overall length is 45.5cm, and the width is 40cm, The arc length of the fan teeth is 65.5 cm.
The swing range of the sector gear can control the code length of the Cloth Plaiting Machine. It is a key component of the transmission device. The weight of a single sector tooth is about 11kg and the adjacent tooth pitch is 13mm.

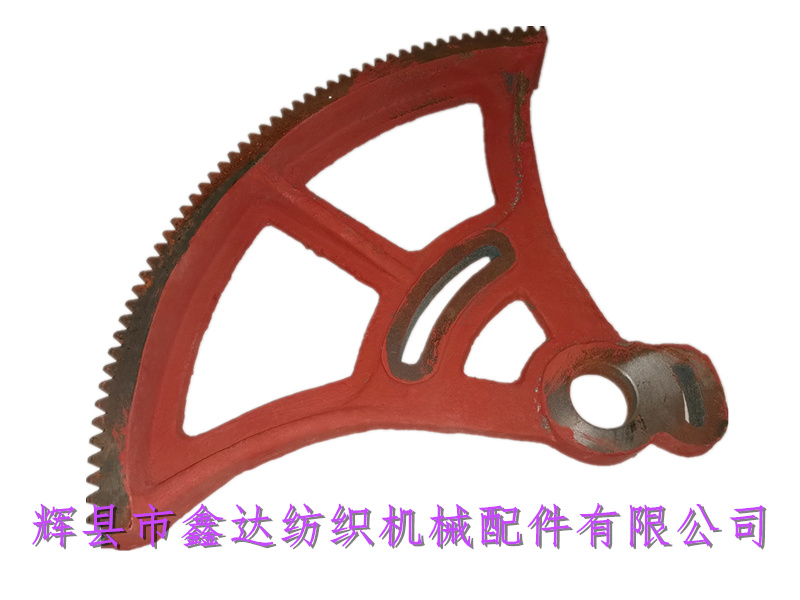

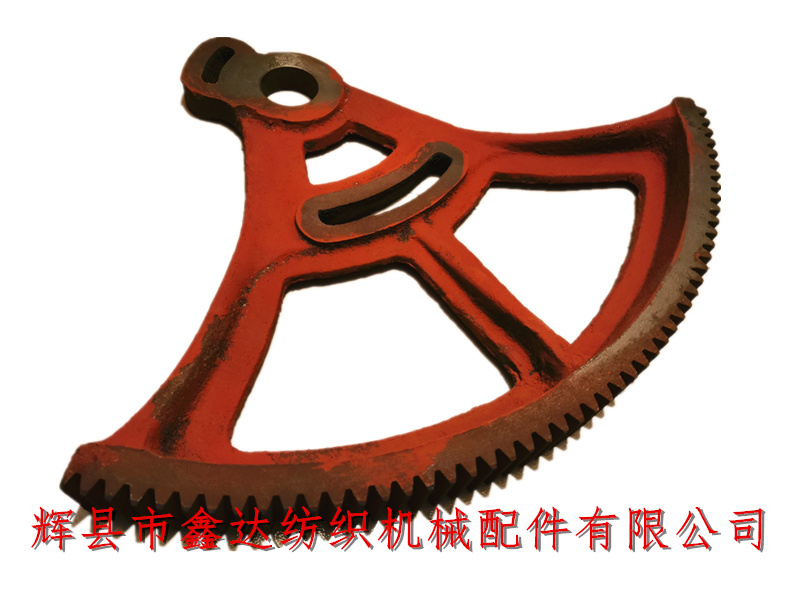

The above figure is the front picture of textile accessories - sector gear. There are adjustable chutes in the middle and tail of the 52 tooth sector gear of Handan cloth coder accessories, which rotate around the central axis of the circular hole. The driving gear, sector gear and arc spur gear of the cloth coder drive the dual parts to work.

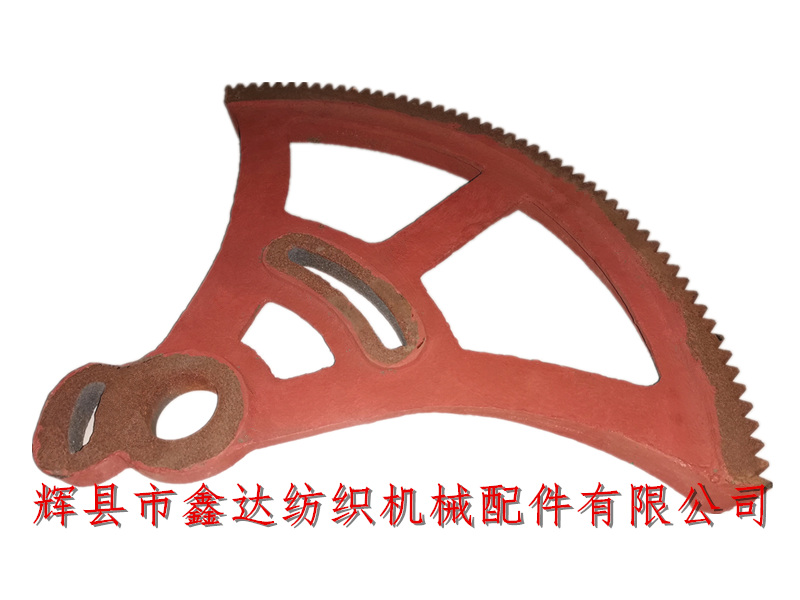

The above figure is the back picture of sector teeth. After deducting the side teeth on both sides, the number of teeth is 50t. The code cloth machine equipment belongs to the auxiliary equipment in textile machinery, which is used for the stacking and code cloth process after weaving. The simple code cloth machine is divided into ordinary type (CAM) and chain type, while the Handan full-automatic code cloth machine only adopts the fan tooth chain design.
