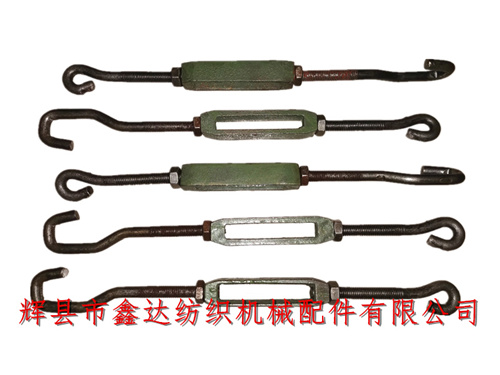

A complete set of components of the lower heald hook of the heald frame of China loom accessories. The material of the middle flower basket M42 is pig iron, and the screw holes at both ends are provided with positive and inverted wires. When rotating the middle flower basket of the lower heald hook, M00-4 (lower heald screw) and M41 (lower heald foot bar) at both ends can be retracted and retracted, which is used to adjust the height of the heald frame of China loom. The total length is 33.8 cm.

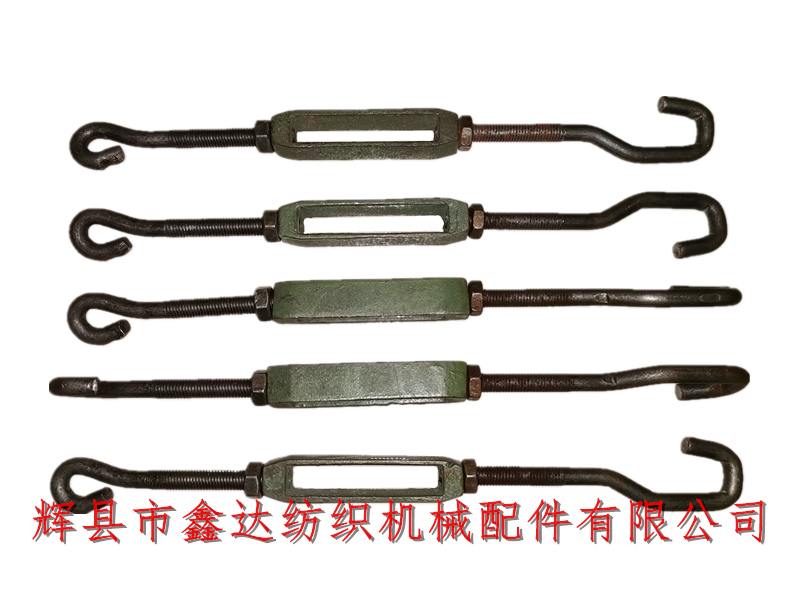

The green flower basket in the figure above is also called the heald hook adjusting nut. Its length is 96mm, its width is 21.5mm, and its height is 19mm. The screw holes on both sides are M10. Lower Hook For Heald Frame Of Power Loom, It is divided into regular thread (clockwise thread rotation) and inverted thread (counterclockwise thread rotation). The heald hook under the heald frame can be applied to 44 inch Chinese dynamic loom.

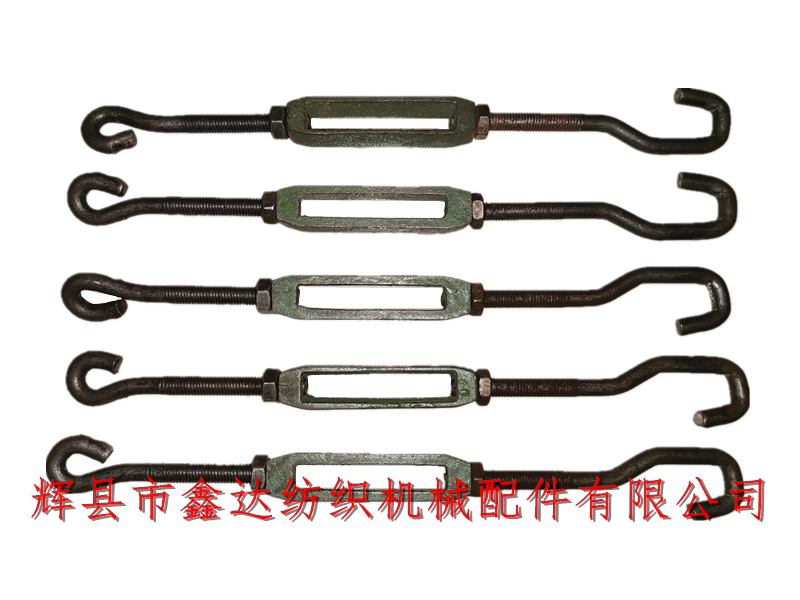

From left to right in the above figure, M00-4 (length 118mm), M42 and M41 (length 146mm) are in turn. As the name suggests, the lower heald hook is installed under the heald frame of the loom, M00-4 is connected with the M44 connecting hoop under the heald lifting plate of the loom, and M41 is the groove that hooks the front end of the heald bar.

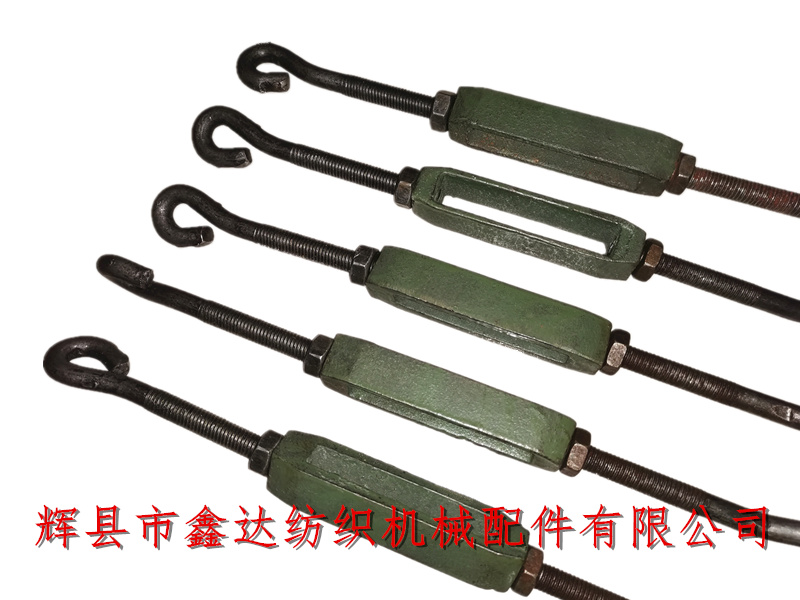

The frequently worn accessories of textile heald frame hook and loom heald hook are flower basket (adjusting nut) and foot hook M41. The weight of the whole set of lower heald hook is about 0.32kg. China Power loom heald hook is generally used on each machine. For the procurement and application of the whole set of components M00-4 * M41 * M42 of textile machine accessories heald hook, please contact our customer service manager.
