Huixian Xinda Textile Accessories Co., Ltd. has long provided shuttle loom accessories - F4 picking nose, general textile parts for loom. The shuttle nose is called shuttle nose because it is sharp on both sides and shaped like a nose. Model 1511 and 1515 loom are general in use (except Kuofu 1515K). The distance between the two noses of F4 shuttle nose is 126mm, and the outer width of the two straight sides is 103mm, The plane width of the nose is 33mm (the total thickness of the shuttle nose).

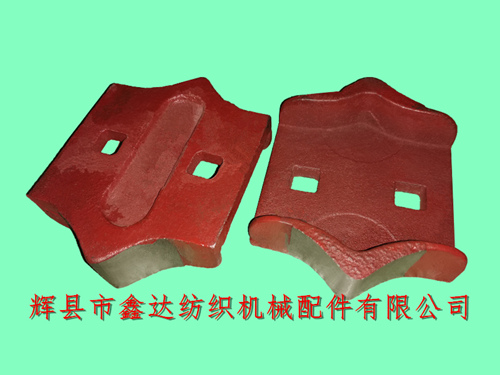

As shown in the above figure, the material of the red shuttle nose is ductile iron (a mixture of gray iron and manganese steel), which has good wear resistance and strength. The two square holes in the middle are used to fix it to the side plate (bottom rod).
The shuttle nose F4 has two noses, which can be replaced with the other nose as the shuttle point after one nose becomes worn and shorter.F4 Picking Nose Loom General Textile Parts, This design greatly extends the service life (without overall cracks).
The above figure shows the side views of the picking nose F4. The main body thickness of the picking nose determines its service life to a certain extent. The cast iron steel parts of the textile machine and the picking nose of the old loom accessories are part of the picking device and are vulnerable parts of the loom. The weight of a single F4 is 0.83KG, with 10 pieces per string.
For other parameter details of F4, textile accessories, shuttle nose, and fabric machine accessories, please contact Mr. Yang from "Xinda Textile Accessories". We sincerely welcome domestic and foreign customers to inquire and negotiate cooperation matters!
