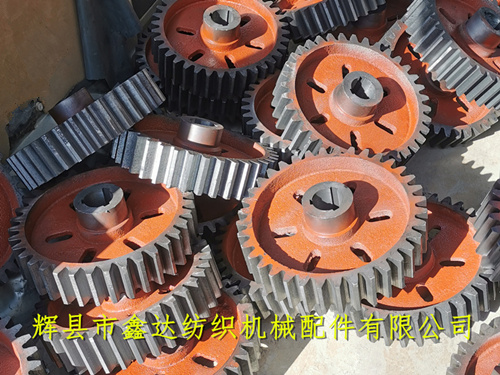

Huixian Xinda Textile Machinery Parts Co., Ltd. has long provided inch D7 bent shaft gear Toyota loom parts 36 tooth wheel milling teeth, made of ductile iron, processing technology: milling teeth, the number of teeth of the Japanese Toyota loom gear (Crank shaft gear) is 36, the module is 6.25, the diameter of the inner hole is 38mm, the keyway is M10, the depth is 2.4mm, the outer diameter of the curved shaft gear is 239mm, the thickness is 7.8cm, and the outer diameter of the middle protruding cone is 73mm.
The three keyways of British D7 are in the same straight line with the six screw fixing grooves on the gear plane. The 36 tooth wheel is installed on the crank shaft (bending shaft) of the loom and connected with the 72 tooth E2 tread plate shaft gear. Loom D7 teeth casting and milling, 1515 bent shaft gear 3210, GH-8 Toyota loom accessories, GH-9 teeth milling gear, textile gear and other kinds of diverse, welcome to draw or sample processing customized.
The bending shaft gears of textile machines are divided into metric 36 teeth, British 36 teeth, and metric 38 teeth (metric 38mm hole, 40mm hole, 42mm hole, and 41.2mm hole used on British GH-8 loom). Their external dimensions are basically the same, but the difference lies in the position of the keyway and the size of the inner hole.
If you need to purchase or customize gears for D7B loom, 36 teeth and 72 teeth wheels for Toyota loom,D7, Bent shaft gear, Toyota loom parts, Milling gear, Textile gear, please contact Mr. Yang of Xinda Textile Accessories. We are dedicated to providing good products and services to new and old customers at home and abroad!
