Huixian Xinda Textile Machinery Parts Co., Ltd. has long provided PU Front Brake Lining 911 327 353 Sulzer shuttle machine equipment accessories. The English name for textile equipment accessories - PU Front Brake Lining (in Chinese) is Brake Lining, with a total length of 47.8mm, a bottom outer width of 20.5mm (with one end having an outer width of 20mm), an upper outer width of 17.5mm, and a total height of 13mm. The upper surface of the shuttle leather 911327353 has two horizontal and two vertical straight grooves, and their inner width is 2.3mm, The depth is 5.4mm; There is also a V-shaped straight groove on each side, with an outer and inner width of 2mm.

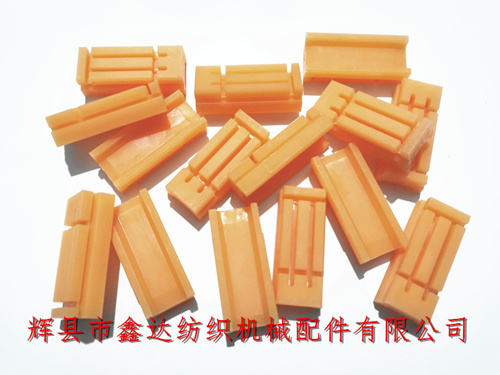

The front and back of PU-D1 type Front Brake Lining (as shown in the above figure), and the two ends of the bottom U-shaped groove are in a downhill shape. The upper width of the U-shaped groove is 14.2mm, and the lower width is 11mm. Sulzer's shuttle leather accessories of the same model are divided into three sizes: large, medium, and small, which are distinguished based on their appearance size. 911327003 is a large size shuttle leather, 911327353 is a medium size brake linning, and 911327271 is a small size shuttle leather. They form a set of shuttle leather components, Used for the upper, front, and rear sides of the shuttle box of the shuttle mechanism.
The above picture is a side view of the medium size PU Front Brake Lining. The packaging of the Sulzer shuttle machine accessory - shuttle leather is transparent bags, with 30 pieces in each bag. Brake Lining,Front Brake Lining,Sulzer Parts, The weight of a single PU Brake lining (911327353) is about 9.5 grams, which means the weight of each bag is about 289 (including the weight of transparent bags).
Textile equipment accessories - The upper surface of the Brake Lining is divided into different sizes by straight grooves. The middle width of the long straight groove is 5mm, while the two sides are 4mm; The middle width of the short wire slot is 28mm, and the size difference between the two ends is significant (one end is 11.2mm, the other end is 3.5mm). If domestic and foreign customers need to purchase shuttle leather, Sulzer accessories, shuttle machine accessories, equipment accessories, and other products, please contact Mr. Yang from "Xinda Textile Machinery Accessories" for consultation. We are dedicated to providing you with services.
