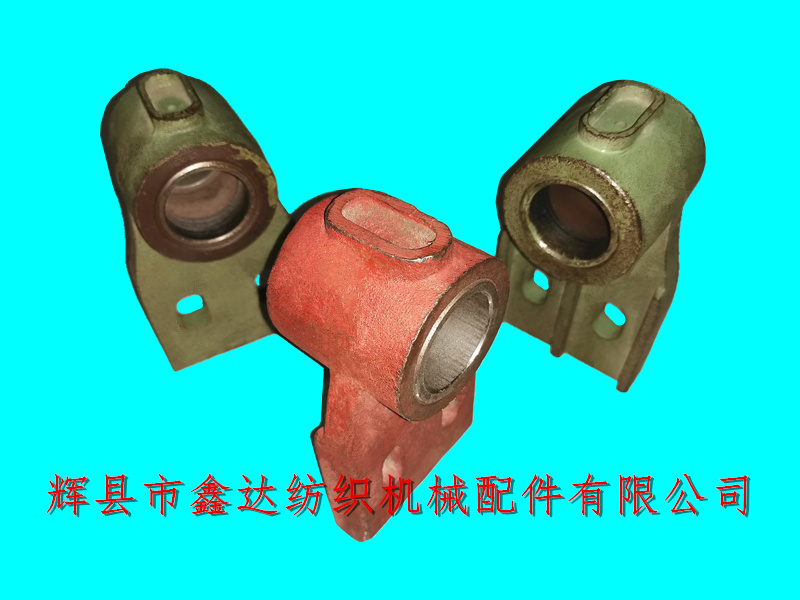

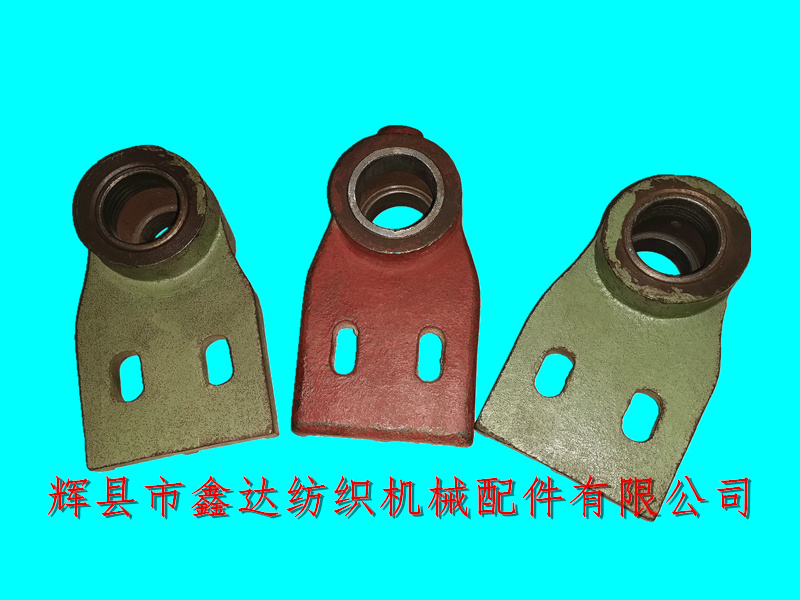

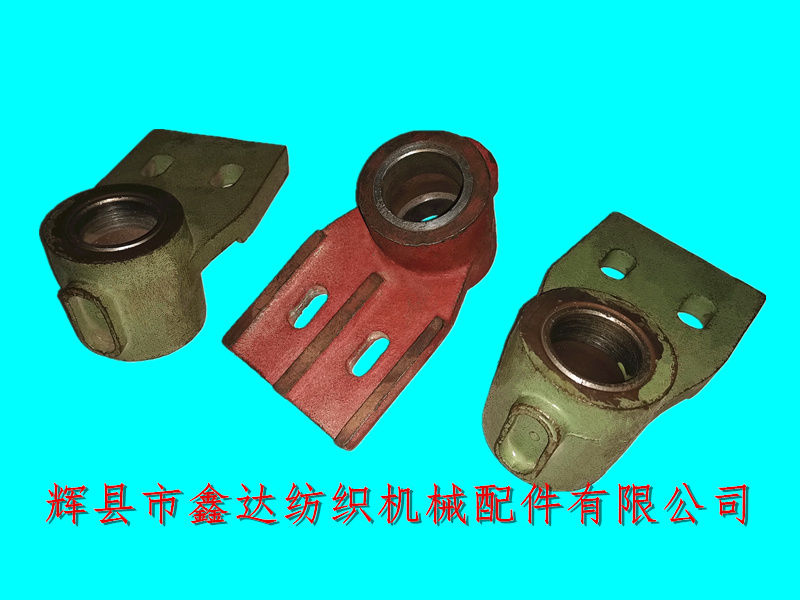

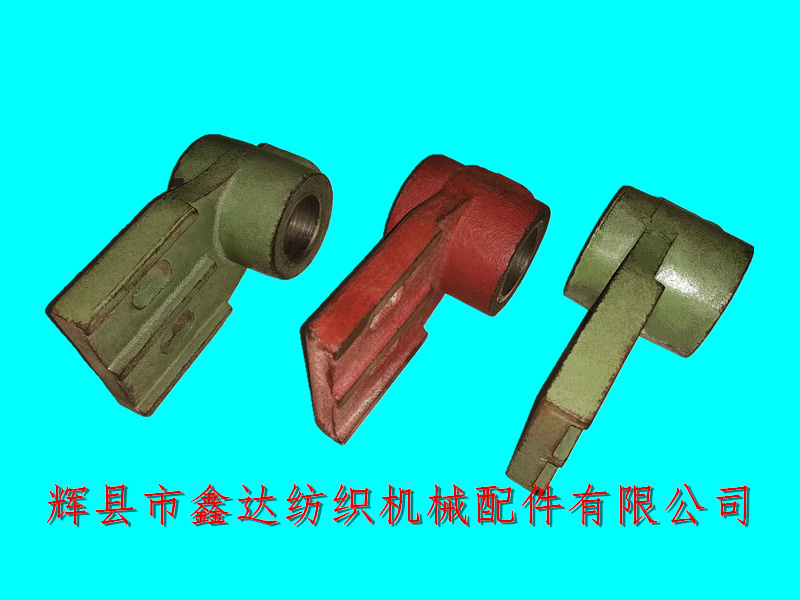

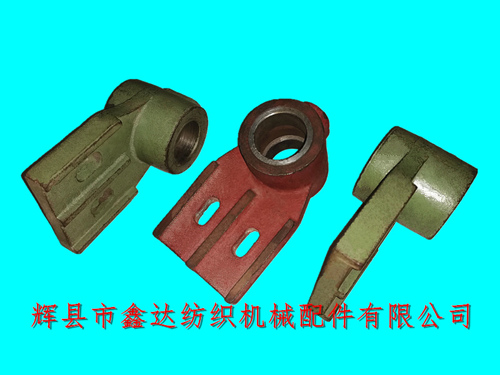

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides GA615 loom crankshaft support foot assembly 4100-3 all year round. The loom crankshaft, also known as crank shaft, is a kind of textile bending shaft. The loom crankshaft support foot is composed of 4107 main body and 4121 bushing (2), and the material is HT15-32. The old loom support foot is fixed on the f40b crank shaft support, which is divided into left and right hands, but the support foot is not divided into left and right hands, The number of support feet used by each loom is 1.
The length of loom 4100-3 is 16 cm, the width is 9 cm, the outer diameter of shaft hole is 66.5mm, the length of shaft hole is 67mm, the inner diameter of intermediate shaft hole is 40mm, the outer diameter of shaft sleeve 4121 is 46mm, and M12 thick carriage screws are installed in the lower screw chute, with a thickness of 20mm,GA615 Loom Crankshaft Support Foot 4100-3.
There is an oil groove above the support foot of the crankshaft and an oil filler hole in the middle. There are two bushings in the support foot of the GA615 loom with a spacing in the middle, which can store oil and play a key role in reducing the wear of the loom crankshaft.
At present, after optimized production, the main body of the crankshaft support foot of textile accessories-4100-3 is the same as that of F00-1 used in 1511 loom, and the internal bushing is different. Installation requirements: install in the opposite direction as far as possible, and the gap with crankshaft 3209 shall not exceed: major repair 0.4mm, minor repair 0.5mm. If it exceeds, replace oil bearing bushing 4121.
Loom crankshaft accessories and crankshaft support feet 4100-3 are old loom accessories, belonging to GA615 old loom components.Loom Crankshaft,Loom Support Foot,Shuttle Loom Parts, Package: 5 / string, and the weight of a single support foot is about 1.75 kg. For other details of 4100-3 support feet, please contact Mr. Yang of Xinda Textile accessories!
