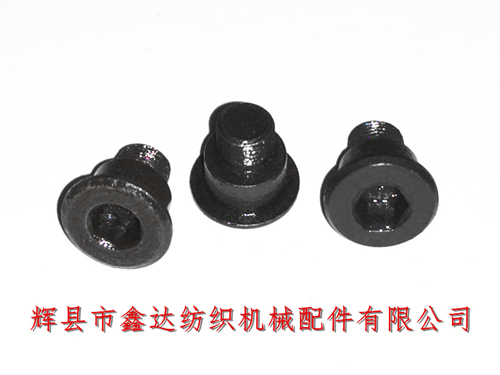

Huixian Xinda Textile Machinery Parts Co., Ltd. provides P7100 Projectile Parts Special Screw 911229131 textile hardware. The English name of the opening hook short screw is Special Screw, and the specification is M5 * 0.5. It is fixed with the opening hook long screw 911329032 to open hook (911629006). The shape parameters of the short screw: the bottom diameter is 9.3 mm, and the thickness is 1 mm; The diameter of the round table is 7mm, the height is 4mm, the height of the front fine thread is 4mm, the diameter is 5mm, and the total height of the short screw is 9mm.
The inner length of the inner hexagon at the tail is 4mm, and the P7100 projectile loom accessory - open hook short screw is the Projectiles Circulation component of the Sulzer projectile loom. The packaging of the short screw is a transparent bag, with 50 pieces per bag.
The color of the short screw for opening the hook of the Sulzer shuttle machine accessory is black and is made by phosphating treatment. The weight of a single P7100 short screw for opening the hook is about 1.8 grams. Due to the high accuracy requirements of the accessories, the tolerance fit of different components has strict requirements.
If foreign textile enterprises and traders need to purchase 911229131, Projectile Parts Special Screw, opening hooks, and textile hardware products, please contact Mr. Yang from Xinda Textile Machinery Accessories for consultation. The minimum order quantity is 10 pieces and the delivery time is 5-8 days.
