Huixian Xinda Textile Machinery Accessories Co., Ltd. specializes in providing customized and processing services for special textile wood accessories - 47cm heavy wool textile wood shuttle,470MM Wood Shuttle For Wool Spinning Machine,The length of this shuttle is 470 mm, the outer width of the bottom is 48 mm, the height is 39.5 mm, the width of the inner cavity is 33 mm, and the length of the inner cavity is 31 cm. There is no through slot at the bottom of the shuttle. The shuttle does not distinguish between left and right hands (only left hand). A single woolen wooden shuttle weighs between 600-650 grams. It belongs to the accessories of Wooden textile equipment.
The inner cavity of the heavy woolen shuttle uses a shuttle core with a reed. The length of the shuttle core is about 15cm, the width of the reed is 3.5mm, the diameter of the weft groove is 22mm, and there are three alumina porcelain eyes in the front of the shuttle.

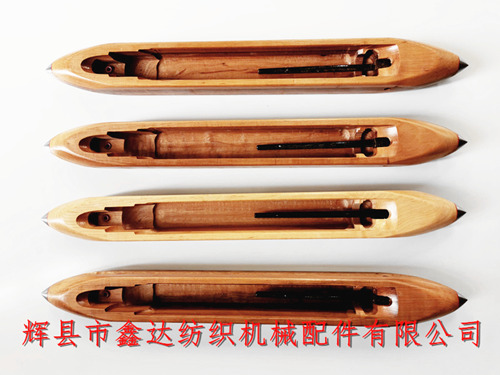

The figure above shows the four sides (front, back, side and yarn discharge surface) of the loom wood accessories - 470 wool spinning wood shuttle. This heavy wood shuttle is composed of shuttle body (compressed wood), shuttle tip, shuttle tip spring, shuttle bottom spring, shuttle Tongue, shuttle shaft (hard wood peg), red steel paper washer and porcelain eye.
The packaging of textile equipment, Wool Spinning Machine shuttle and heavy loom wooden shuttle is: 36 pieces/box. The shuttle compressed wood is generally compressed by the whole block, two layers and three layers by oil press at high temperature. The moisture in the wood is pumped out during the pressing process, and then dried and stored for more than one year before production and use.
Textile wood accessories 47cm heavy wool textile wood shuttle is widely used in the textile industry. It is suitable for weaving heavy fabrics with wide door width. The minimum order quantity is 300PCS and the delivery time is about 50-60 days. We hope all textile users can arrange orders in advance to avoid delaying the weaving production in the workshop.
