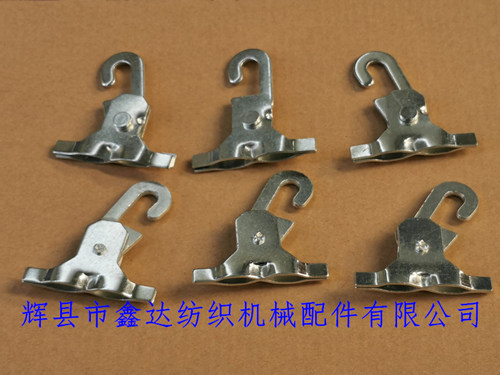

Td-4 textile heald frame hook accessories are mainly used for fixing of dobby loom and multi shuttle heald frame. The products are processed by two sets of single mold. The machine code belongs to sz6910 series. Td-4 heald hook is also known as top hanging heald hook. It is made of galvanized A3 and connected with td-2 flat (composed of td21b and td21c) tube. Each loom uses 64 (16 heald frames), each weighing about 24g.
Td-4, heald frame hook, textile hardware accessories are not divided into left and right hands. Two clips are riveted to fix the hook. The clip length of the hook is 49.4mm, the thickness of the clips on both sides is 2.4mm, and the thickness of the middle of the plywood is 6.4mm; td-4 is 5.6CM in vertical height, the height of the hook is 46mm, and the thickness is 2.2mm.
Packaging: transparent bag, 100 sets for each package, 1000 sets for each box. Due to the requirement of web page opening speed, the photo pixels of td-4 are compressed, which looks a little fuzzy. The product surface is treated with white zinc plating, which is bright and dazzling.
The two sides of textile td-4 slide in from the edge end of heald frame, and the hook can rotate 90 degrees, which is used to ensure that the lifting heald rope can pull the heald frame from different directions for movement.
Processing of td-4 hardware accessories of textile heald hook, purchasing of heald hook on heald frame, and customization of special-shaped textile Hardware stamping parts can be contacted for detailed consultation. Our company will answer for you professionally and welcome customers to discuss cooperation matters.
