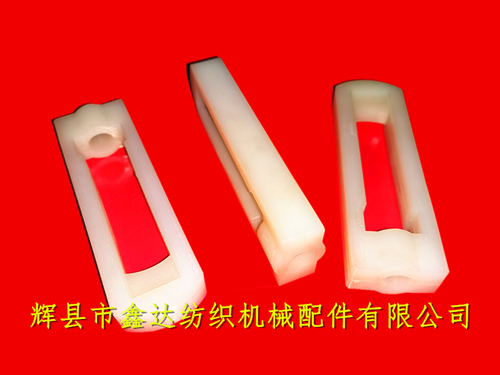

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides textile nylon accessories_ Nylon parts of loom_ Plastic hanging heald flower basket.Hanging Heald Flower Basket,Textile Nylon Parts,Shuttle Loom Parts, The nylon part of the old shuttle textile machine is used to fix the lower beam of the heald frame. The length of the hanging heald flower basket is 98mm, the width is 29.5mm and the thickness is 13.5mm; The inner cavity length of the basket chute of the loom accessories is 66mm, the inner width is 16mm, the diameter of the circular hole of the fixing screw is 10mm, and the length of the hole is 1.5cm.
Textile nylon accessories and shuttle loom nylon parts have a variety of products. Hundreds of products are generally made by injection molding and processed with reinforced MC nylon materials, which have good wear resistance and ductility. The surface of the plastic hanging heald basket in the above figure is smooth and has outstanding fatigue resistance.
The tail of textile nylon parts and plastic parts - hanging heald flower basket is provided with step type clamping groove, the middle is in the shape of groove, the thickness of arc groove is 6mm, the depth of one side is 3.7mm, the inner width of the wider inner cavity is 19mm and the height is 1cm, which is used to fix the nut of screw rod.
In addition, Xinda Textile accessories also provides various 1511 nylon parts, 1515 plastic parts, GA615 injection molded parts and other products. Heald rotor parts, handle bushing nylon parts, various nylon bearing shells, steel core nylon shuttle columns and other common vulnerable parts of shuttle loom, which belong to textile nylon accessories. The packaging of nylon parts plastic hanging heald flower baskets of loom is 250 pieces per package, and the large packaging is 2500 pieces / bag.
If you need to buy 44 inch nylon accessories, loom nylon parts, 56 inch loom hanging heald flower basket, 1511 textile nylon parts, 1515 automatic shuttle changing loom accessories, please contact manager Yang of our company for consultation and negotiation. We wholeheartedly provide you with all-round comprehensive services and products of good quality.
