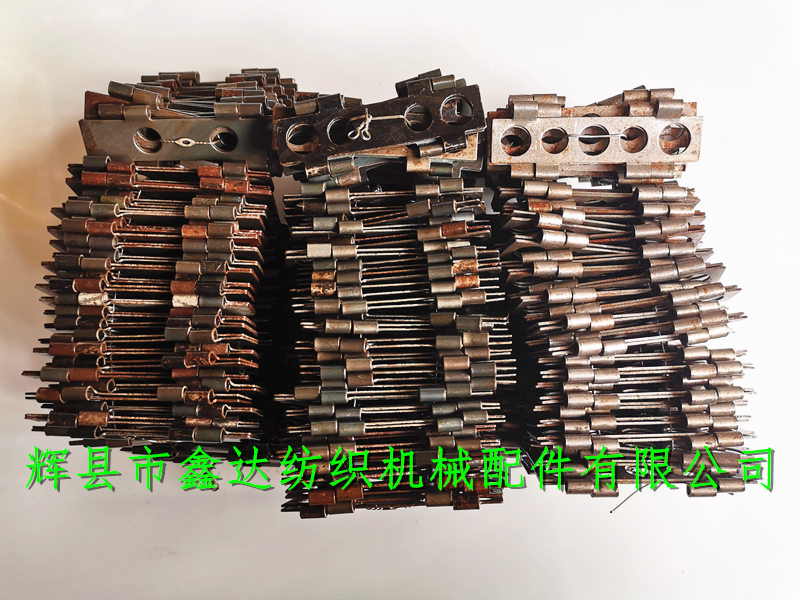

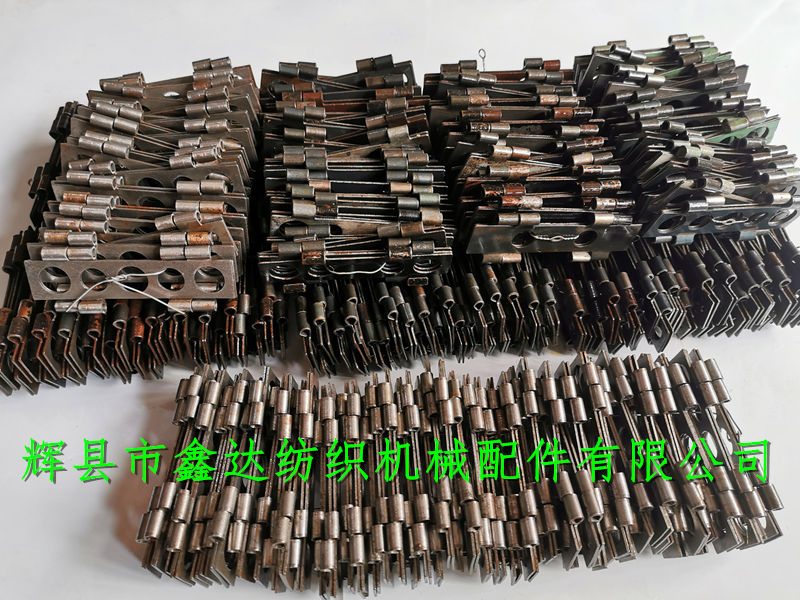

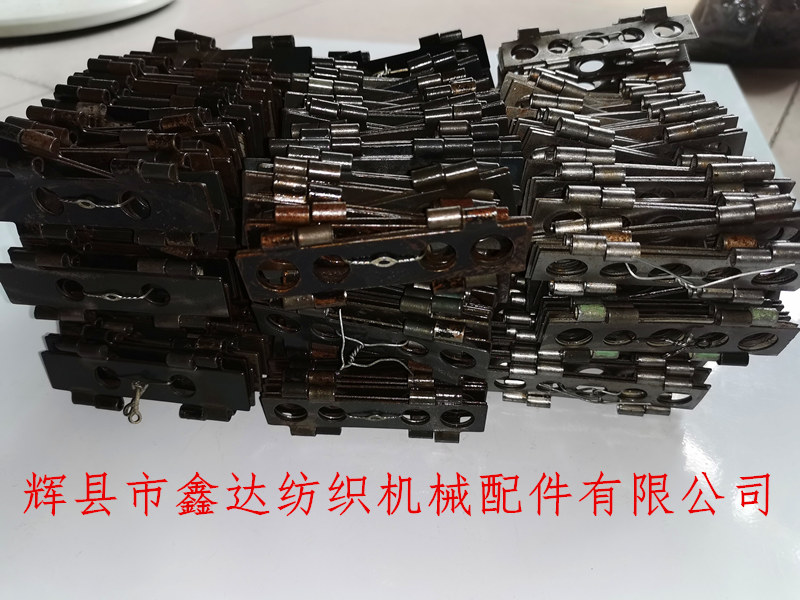

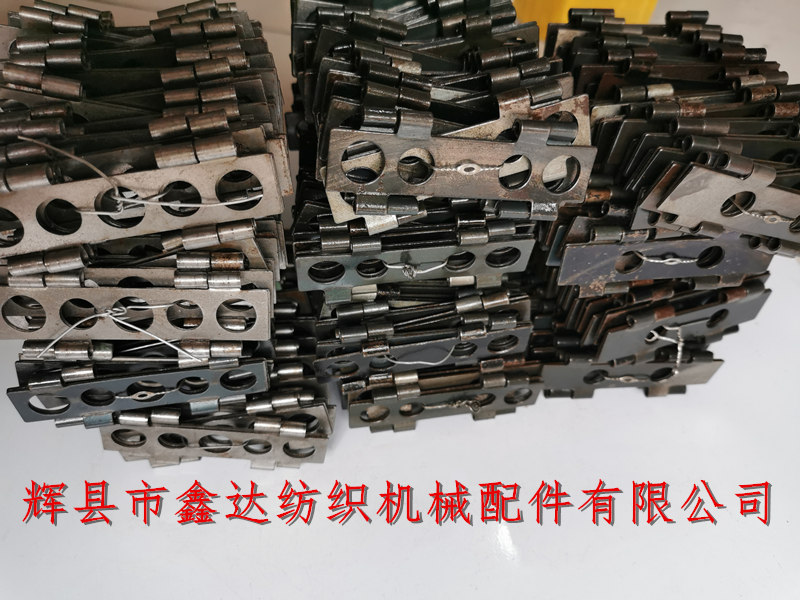

The length of small steel plate and pin for 1511 multi shuttle machine is 84mm, the width is 18mm, the thickness is 1mm, the diameter of the big hole on the multi shuttle steel plate is 13mm, the diameter of the small hole is 11mm, the center distance of the holes at both ends of the steel plate is 64mm, 1x4 lattice machine is also called multi shuttle machine, the steel plate pin of the automatic lattice machine is used to string up the steel plate, and it rolls by the foreign side. The multi shuttle device controls the shuttle change according to the hole position arranged in different positions on the steel plate Time and sequence.

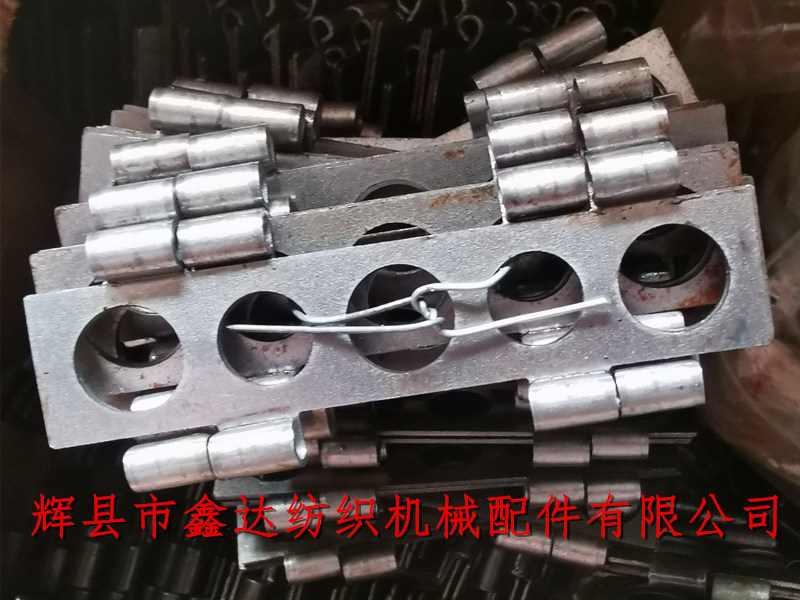

The above figure shows 5-hole steel plate, with large holes in the middle and both ends, and small holes in the rest.
Textile hardware accessories, including woven press parts, textile machinery accessories, die stamping hardware accessories, special 1511 (44 inch narrow door width) multi woven machine accessories.
Textile machinery accessories - Multi shuttle small steel plate, 50 pieces in a string, generally using 2 holes, 3 holes, 4 holes, 5 holes. The steel plate pin is universal, not limited by hole position transformation (1515 steel plate is different from this).
Our company has been engaged in the physical sales of textile accessories for 20 years, and Internet marketing for 12 years. We have a complete product chain group, providing more than 2000 kinds of loom accessories and textile equipment. Our advantage is scarce products or customized equipment. Our long-term philosophy of production, survival and operation is honest operation. We sincerely welcome customers at home and abroad to consult and order.
