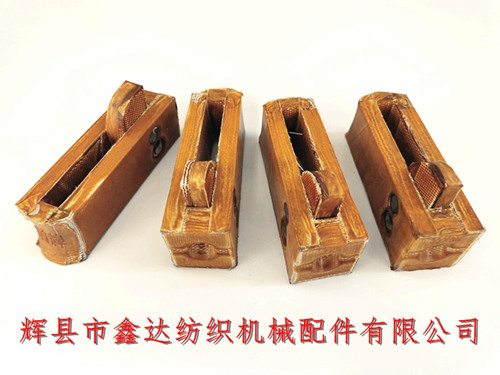

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 44" loom Picker Textile Picking Knot 30x32, part No.: R00-2 and R00-3. The electric 44 inch loom belongs to 1511 type. The width of the leather knot used is 30mm, the height is 32mm, and the cross section is rectangular trapezoid. The included angle between one side and the bottom of the leather knot is 86.5 degrees, and the inner width of the beating chute is 9.5mm.
44 loom skin knot refers to the shuttle throwing knot used in 1511 electric loom with an effective door width of 44 inches (105 cm). It is a textile rubber product, shuttle throwing part of shuttle loom and buffer assembly of loom. It plays an important role in the process of shuttle picking and weft insertion of loom, realizes power transmission to shuttle and provides power transmission for shuttle flight.
Each 44 loom uses one R00-2 and R00-3 (left hand and right hand), with a total length of 105 mm, the effective length inside the chute is 52 mm, and the height of the center of the picking point is 16.5 mm. Each leather knot (picking knot) is fixed with two rivets, and the washer complies with GB95-66 standard.
The packing specification of 44 leather knot, shuttle picking knot, Textile Picker and loom leather knot is 100 pieces/box (50 pairs), and the weight of each box is 11kg. The detailed parameters of textile leather knot involve arc radius, taper, tolerance fit and other information. For details of 44 loom leather knot, please contact Mr. Yang of our company.
