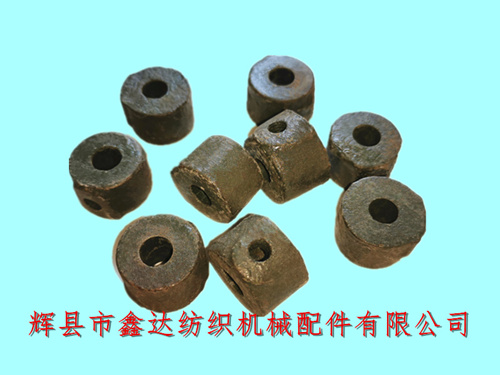

Huixian Xinda Textile Machinery Parts Co., Ltd. has long-term supply of textile retaining rings, weaving mechanism moving rod hooks, stop rings I8, and pig iron tight rings. The brake rod hooks of 1511 and 1515 looms are universal parts I26, with a diameter of 8mm and a length of 495mm (the distance from the inside to the bottom of the hook bend). The inner hole diameter of stop rings I8 is 8.5mm, fixed with M6 support screws, and made of HT15-33 (pig iron). Each loom uses one I8.
The cast iron parts of the weaving machine are generally made of pig iron HT15-33 or HT15-32. The hook at the front of the moving rod hook I26 of the weaving machine is hung on the circular hole at the front of the inclined rod I3, and the lower straight handle passes through the moving rod of the weaving machine (1511 is F2171515 is 4104). After that, an I8 stop ring is installed, which is mainly used to adjust the height of the stopping rod. Retaining rings, stop rings, and tight rings are common accessories in weaving machine equipment, used to block the position of the support foot on the spindle and ensure its movement range is within a reasonable range.
Installation and inspection method: Thread one end of the brake hook I26 into the brake rod hole, hook the other end into the circular hole of the tilt rod I3, and then install the tilt rod on the switch handle bracket I2. When the switch handle is in the driving position, the upper edge of the tilt rod is roughly horizontal, and then fix the tilt rod I3; Pull the switch handle to the off position, insert the tightening ring I8 into the lower end of the brake hook, leave a 1.6mm gap between the tightening ring and the brake rod, turn the tightening screw to the gear, and then tighten the screw.
Xinda Textile Accessories has been engaged in the shuttle weaving machine accessories industry for more than 20 years and has accumulated a lot of industry experience and contacts. If textile enterprise manufacturers purchase textile casting products such as textile retaining rings, weaving mechanism moving rod hooks, stop rings, I8, and pig iron tight rings, please contact Mr. Yang of our company!
