Huixian Xinda Textile Machinery Parts Co., Ltd. provides customized services for steel wire healds (stainless steel) of 330 large eye heald weaving machines for textile equipment all year round. The diameter of the steel wire for 330 stainless steel heald can be processed according to customer requirements. The diameters of stainless steel wire are 1.2mm, 1.4mm, 1.6mm, 1.8mm, and 2.0mm, with 1.2mm being the main one. The middle hole (heald) can be processed in the shape of fish eyes and squares, The specific size needs to be verified through feasibility 3D simulation.
As an example, the stainless steel heald wire is processed with 1.6mm diameter steel wire. The inner length and width of the two end heald ears are 28mm and 4mm, and the inner length and width of the middle heald eye hole are 12mm and 10mm. The connection points of the product are processed by copper welding, and the surface is treated with nickel plating.

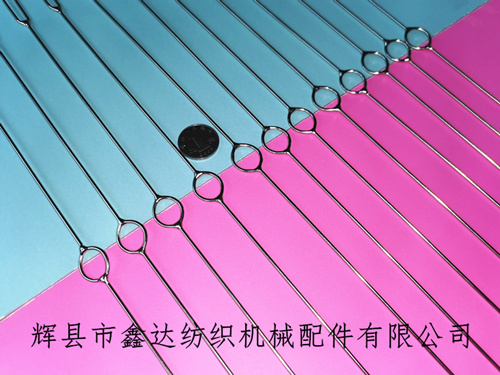

The above picture is a photo of the heald eye, with a dime next to it for comparing the size of the heald eye. This model of stainless steel heald wire is mainly used for the production and weaving of coarse warp fabrics. The weight of a single steel wire heald is about 7.25 grams. The product is packaged in transparent bags, with 200 pieces per bag (see figure below). The minimum order quantity is 1000 pieces of the same model and specification, and the delivery time is 30-35 days.
This type of large eye heald wire has high tensile strength, smooth and delicate surface (the product undergoes processes such as deburring, degreasing, and polishing before galvanizing), good wear resistance, and strong corrosion resistance. When producing large eye heald wire, the angle between the heald eye and the two end heald ears can be selected as 30 ° or 45 °, but the disadvantage is that the heald frame occupies relatively more space when arranging such stainless steel heald wires (steel wire heald).
If textile production enterprises and processing units need to purchase textile healds, large eye healds, steel wire healds, textile equipment, loom healds, 330 healds, please provide samples or detailed drawings to contact Mr. Yang of our company for consultation!
