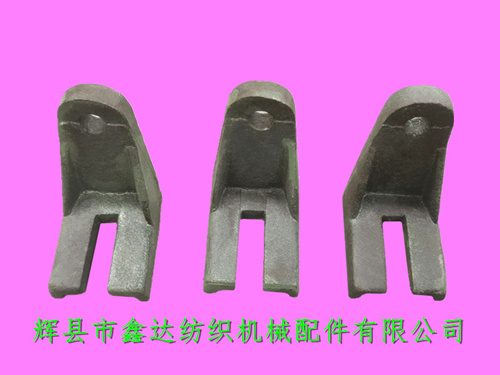

Xinda Textile Machinery Accessories in Huixian City provides spring feet for 1511/1515/GA615-L18 fabric roll support rods,L18 Backet For Spring Of Cloth Roller Lever. The bottom width of the L18 spring foot is 58 millimeters, the length is 70 millimeters, the inner width of the fixed groove is 14 millimeters, the inner length is 48 millimeters, and the diameter of the circular hole for fixing the spring hook is 14 millimeters.
The total height of the spring foot L18 of the roll roller support rod is 9.5 centimeters, and its material is gray pig iron HT15-33. Each weaving machine uses 2 of them, installed on the front crossbeam below the weaving machine (1515 and GA615 models are 43071511 models are P4 Frontcross rail).
The bolt specification in the circular hole is M10, with a length of 11 centimeters. The length of the front screw is 7 centimeters (used to adjust the tension of the L72 spring For Cloth Roller Lever). This bolt is called the "tension spring bolt".Cloth Roller Lever,Shuttle Loom Parts,Loom Backet,Spring Feet.
If you need to purchase roll roller feet, L18 Backet For Spring Of Cloth Roller Lever, 1511 loom accessories, textile spring feet, 1515 textile accessories and other products, please contact Mr. Yang from our company for consultation.
