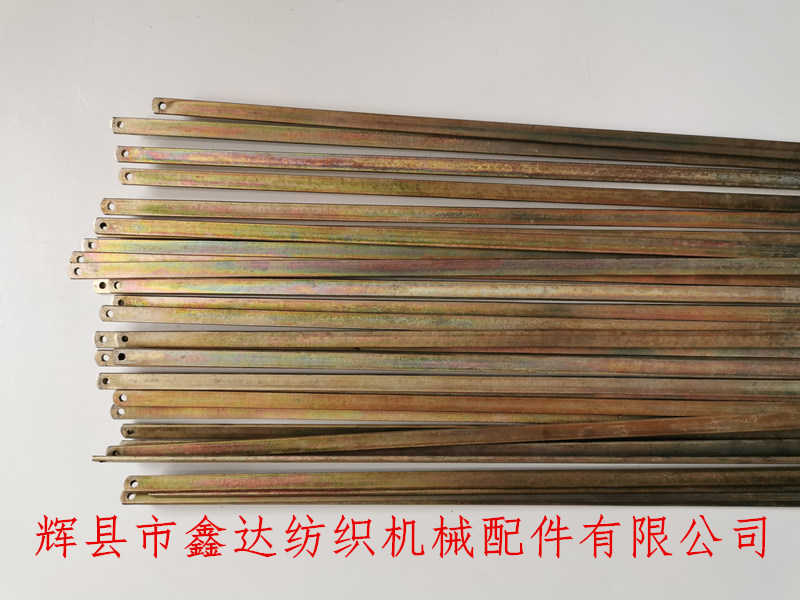

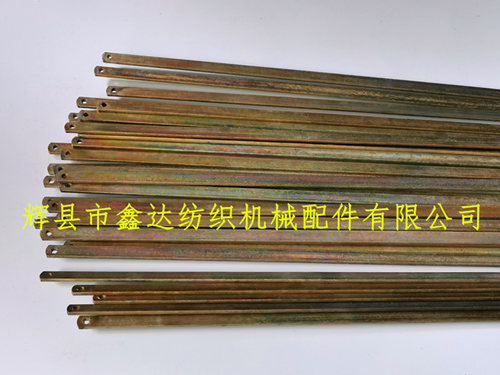

Henan Xinda Textile Fittings perennially provide various length specifications of flat iron heddle of loom iron bar textile machine (heald), loom heddle,loom bar, textile machine straight bar flat iron, the product is extruded with A3, width 9 mmX thickness 2.4 mm, 60 cm iron bar, 65 cm straight bar, 75 inch heald, generally use length less than 2.8 meters (for shuttle machine use), rapier heald thickness is generally 2 mm, the use length is less than 3.6m.
The loom harness has 4.2mm round holes at both ends, which is used to prevent the harness bar from moving left and right in the harness frame, and the harness yarn from falling off. The surface of the product is galvanized (coloured zinc, white zinc), 100 pieces per bundle, 200 pieces per package.

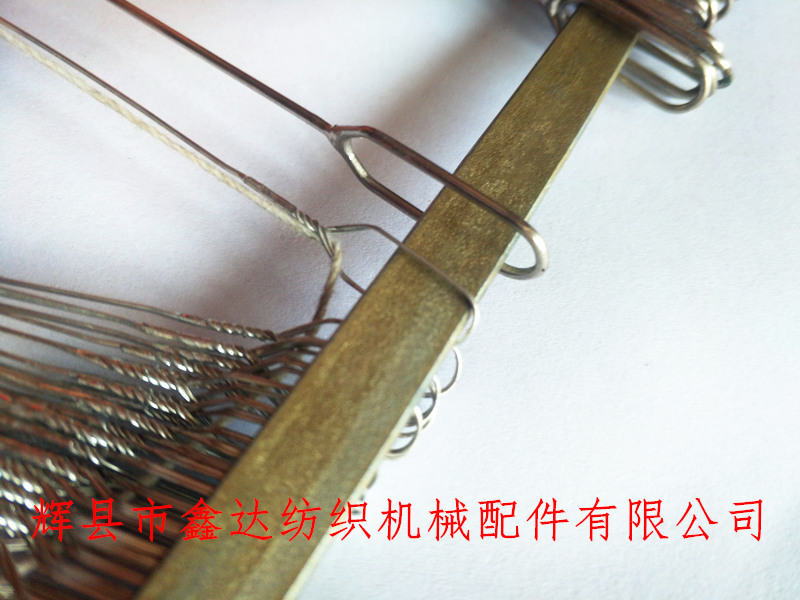

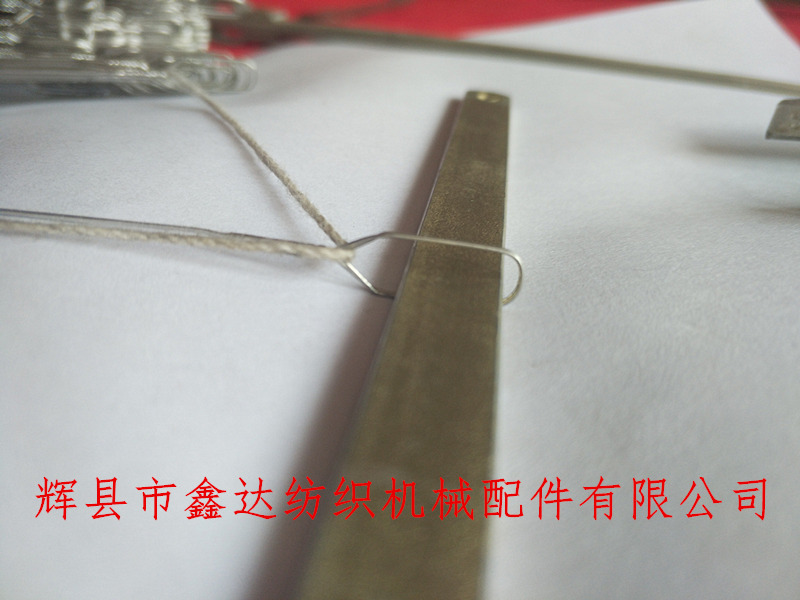

Installation contrast diagrams of common steel wire heald and stainless steel heald wire and flat iron of heald wire, the thicker is stainless steel heald wire, and the finer is tin welded heald wire (double side by side). Iron bars, heddle bars and heddle bars are ordered as follows: 100 pieces. The products support customization of different lengths. The default payment is to arrange production, and the delivery time is stipulated.
Specialized shaping processing, the thickness is about 0.5mm thicker than the market sales. About the gap between the brown ear of the heddle and the iron bar (straight heddle), it is explained that the purpose of using this method in the process of electric weaving and manual weaving is to ensure that when the upper and lower layers of the warp yarn move to form a shuttle, the heddle is passively stressed and can swing left and right on the straight line according to the direction of force to ensure the angle of warp passing through the heddle. Small friction.
