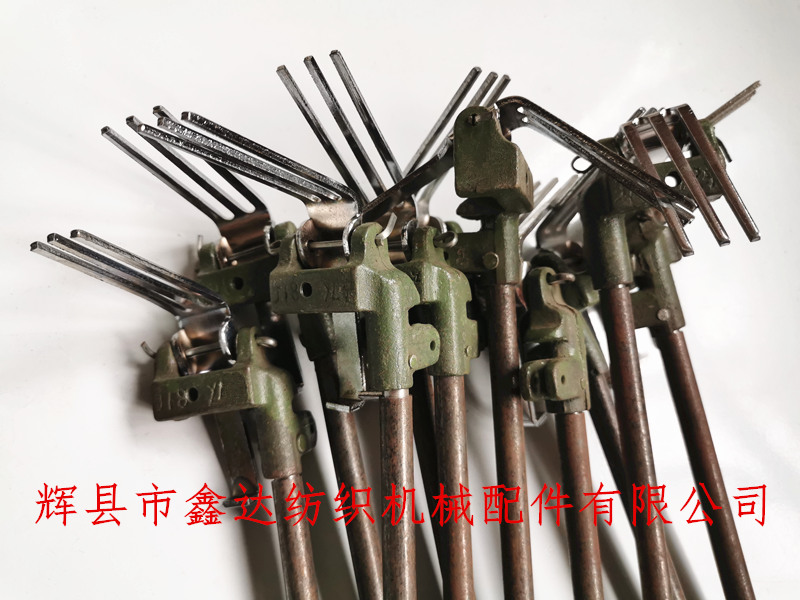

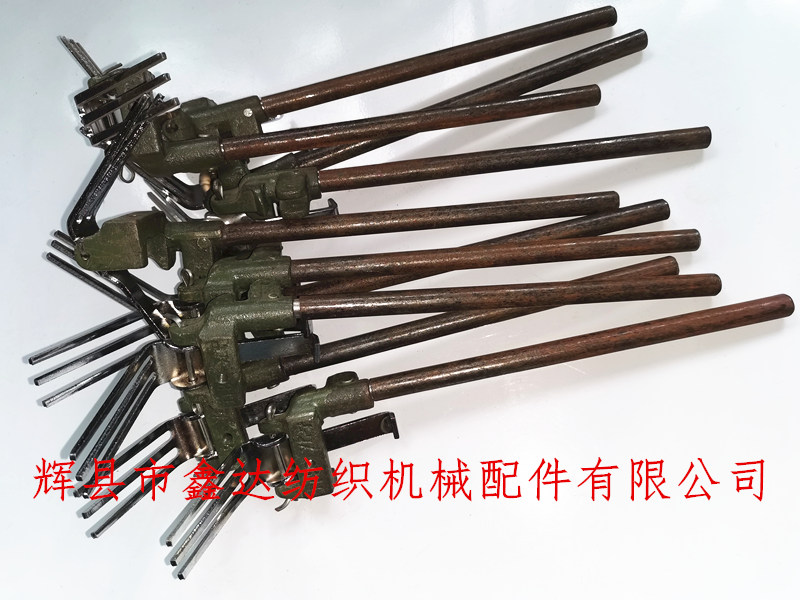

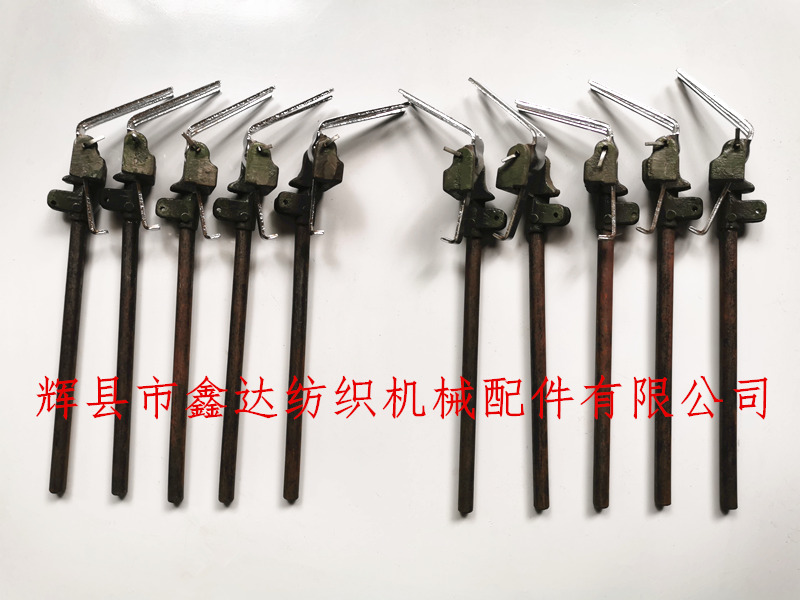

Our company provides J00-4 weft fork support joint of GA615 loom, referred to as weft support accessories. The product is composed of J30 weft fork spindle, J18 weft fork support foot, J32C weft fork and fixed pin. The rear connection J19 of weft fork spindle is applied to detect weft shuttle change device, which belongs to shuttle change induction component of loom.
The material of J18Y weft fork support foot is KT30-6. It is made by sand turning, drilling, threading and turning. It replaces the original copper processing. The inner hole diameter is 8mm. It is used to fix the weft fork spindle head.Weaving Machine J00-4 Weft Fork Support Joint.
Textile parts J30 spindle rod length 198mm, diameter 10mm, flexible reciprocating, tail extension weft spindle supporting foot J7 about 35-40mm, material A3. Crank shaft in the front dead center position, weft fork left and right center, protruding gantry gear 1.6mm, 13mm below. When the crank shaft is below the front center, the shuttle is on the switching side and the reed is 165-170mm away from the breast beam, it begins to hook with the weft fork hook J2.
The weft fork in the weft fork support J18 is less than 0.4mm in horizontal motion, and has flexible swing. Three-finger rake (weft fork) is smooth and smooth, with the same opening, center distance 9 mm, bending angle 106 degrees, and clearance with pin less than 0.2 mm. Weft fork, loom accessories, wholesale processing of textile parts, please contact Xinda textile machinery accessories!
