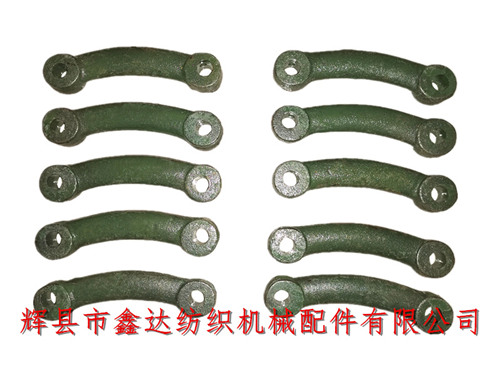

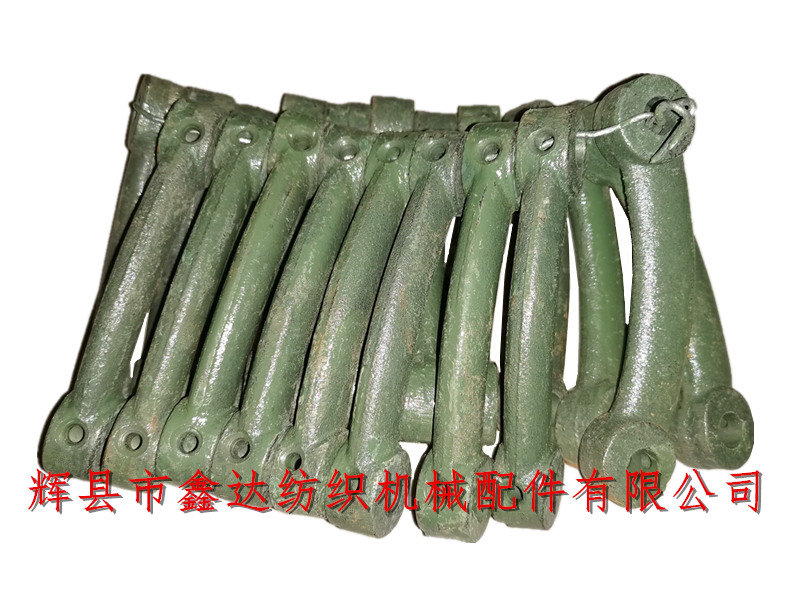

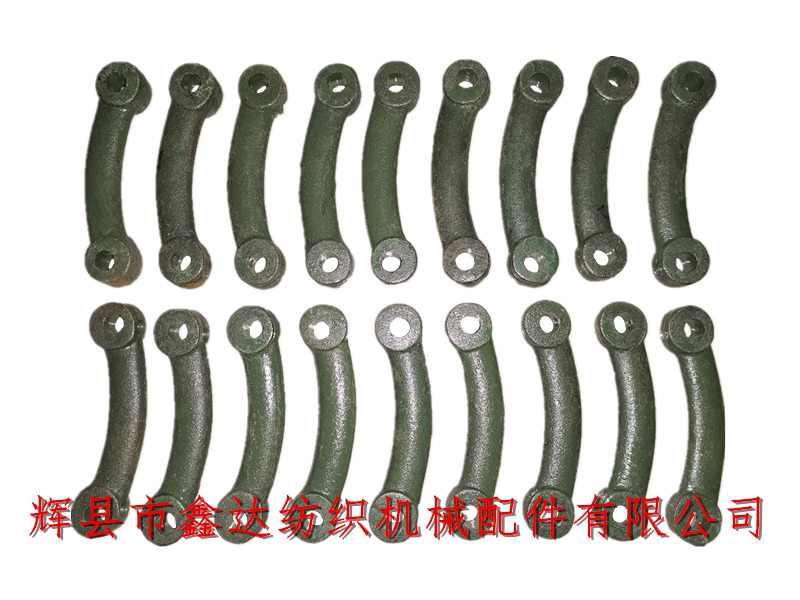

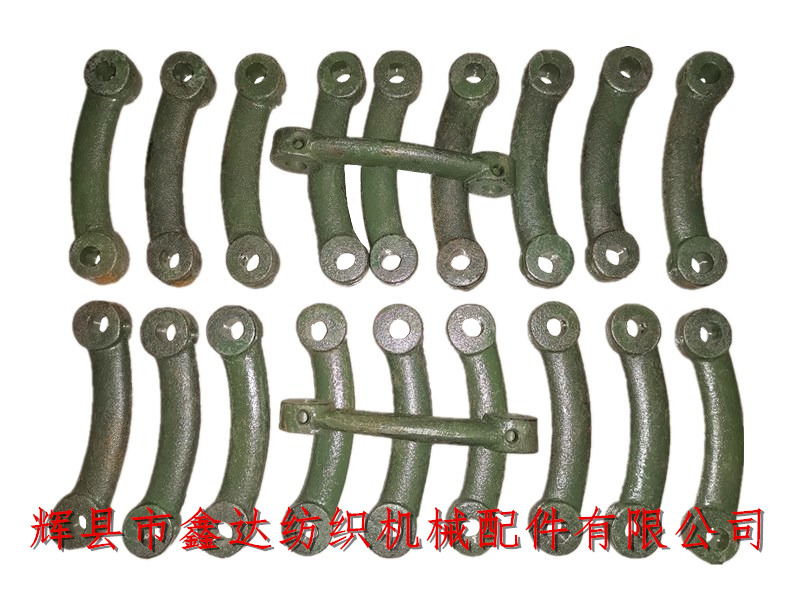

Huixian Xinda Textile Machinery Accessories Co., Ltd.supply Vintage Shuttle Loom Spare N4 Pushing Link, is a supplier of N4 propulsion slider connecting rod, an old shuttle loom accessory. The N4 propulsion slider connecting rod is connected with the connecting rod with a bolt (N23) and installed on the N2 slider. The inner diameter of the two holes of the shuttle loom connecting rod N4 is 10mm, the total length is 114mm, the thickness is 13.5mm, and the weight of a single propulsion connecting rod is about 0.15kg.
The clearance between textile machine accessories N4 and n23 shall not exceed 0.4mm, and the total clearance between two matching shall not exceed 0.6mm. N4 connecting rod shall not be divided into left hand and right hand. One piece shall be used for each old shuttle loom, and the center distance between the two holes is 92mm.
The thruster guide foot slot shall slide without resistance, and the upper, lower, left and right fit clearance between the two shall not exceed 0.8mm. The two ends are equal in length, and the end face of the head is 90 °, and the top and the head end shall be smooth without acute angle and quick opening. The front dead center of the crank shaft protrudes from the front brake rail by 0-0.8mm (pulling back the propulsion slider does not retract the front brake rail, and both ends extend out by the same length); 0.8-2.4mm from the bottom plate of the shuttle box (the difference between the two ends shall not exceed 0.8mm); The head end face is 5-9mm away from the front wall of the shuttle in the shuttle warehouse.
The connecting rod of N4 propulsion slider, a part of the old shuttle loom, is a vulnerable part. Its function is mainly reflected in pushing the empty shuttle from the shuttle shed to the shed after the weft yarn in the shuttle is used up. If you need to purchase textile machine accessories N4 and other accessories, please contact Xinda Textile accessories company for consultation!
