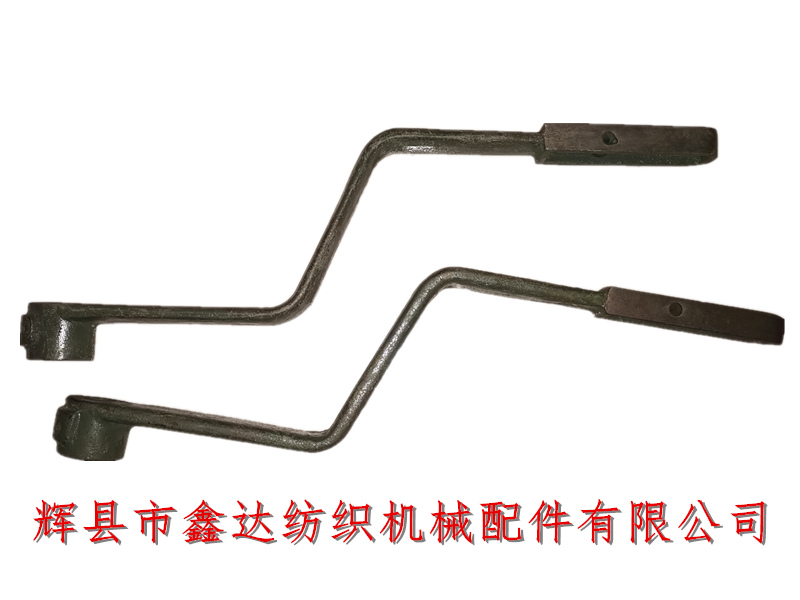

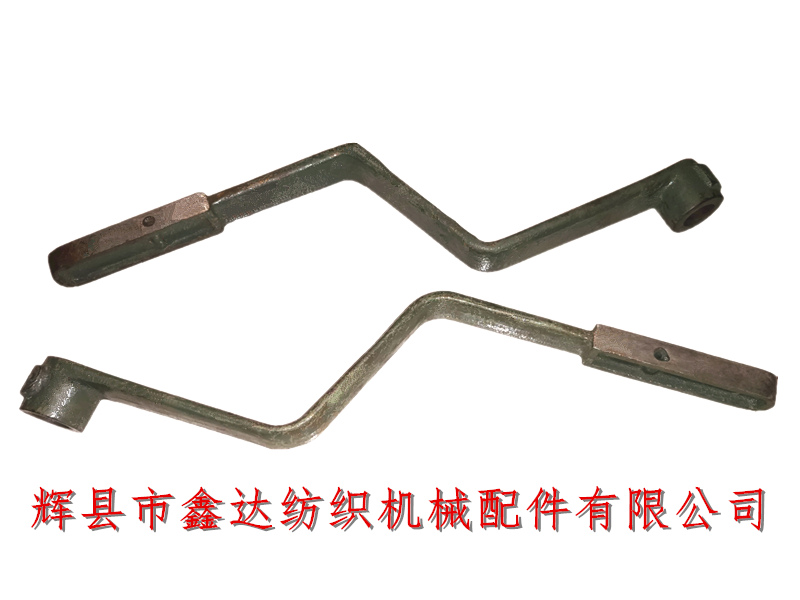

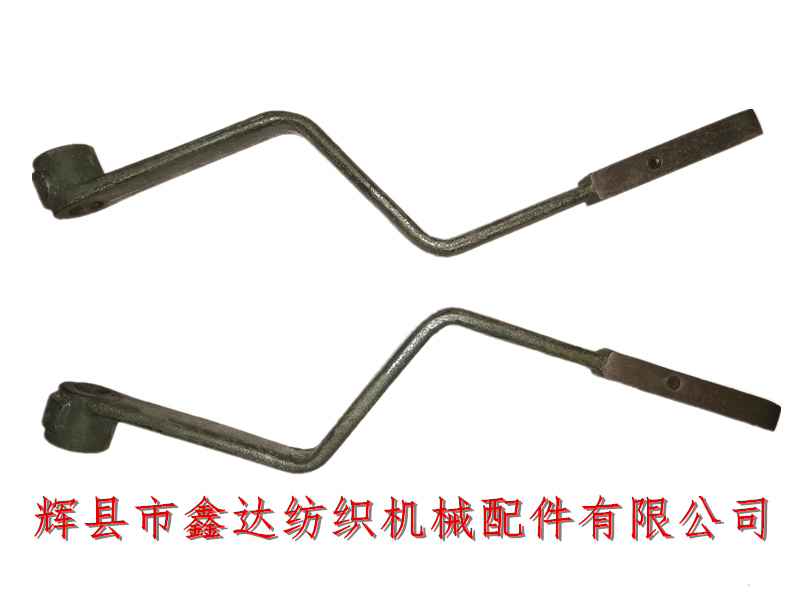

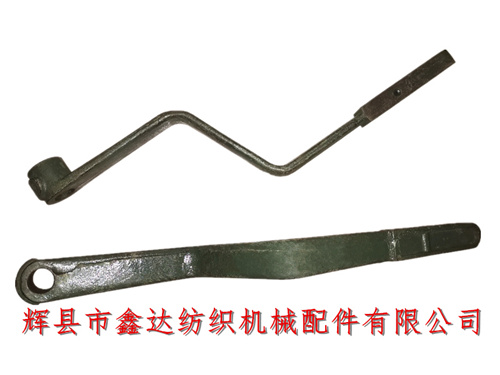

Huixian Xinda Textile machinery accessories produces 1511 single beam textile accessories C13 Easing Motion Lever For Shuttle Loom,The plain Easing Motion Lever used in 1515 and GA615 loom is 3410, which is made of HT15-33 pig iron, which is installed on the rear beam (rear rocker) of the single beam loom, and the other end is placed on the smooth motion cam D13. Textile accessories - the overall length of the smooth motion rod C13 is 54.5cm, the diameter of the inner hole is 28mm, the outer ring is provided with two M10 support screw holes, and the flat front of the motion rod is provided with a refueling hole, which rubs with the cam surface.
1511 type Easing Motion Lever C13 is used for each single beam loom, regardless of left and right hands. It is installed outside the switch side wall panel of the loom. Installation instructions for C13 smooth motion rod of loom: correct the distance between the front end of the tension hammer rod C14 and the upper edge of the wallboard to be 108 mm, the bending shaft is at the upper center, the tension rod is flush with the upper part of the brake, put on the rear beam C28 and the smooth motion rod C13, use the rear gauge to correct the distance between the rear beam and the rear rod C29 to be 46 mm, and tighten the screws of the support head of the smooth motion rod. The smooth motion rod shall be flush with the outer side of the smooth cam and shall not collide with the bent shaft gear cover d34.
The arm width of C13 smooth motion rod is gradually changed from 48mm to 34mm (friction surface), the thickness after bending is 14mm, and the thickness of small head smooth surface of loom C13 is reduced from 37mm to 34mm (slope surface). The single weight of 1511 smooth motion rod is 2.5kg, with 5 pieces in each string.
Xinda Textile machinery accessories provides more than 300 kinds of shuttle textile accessories, including various device parts of the loom. For more details (price, parameters and minimum order quantity) of 1511 single beam textile accessories - smooth motion rod C13, please contact Mr. Yang of our company!
