Huixian Xinda Textile Machinery Parts Co., Ltd. provides 75 inch steel reeds and 1515 wooden reeds.Weaving Loom Wood Rod Reed,Stainless Steel Reed, The materials of the reeds are divided into carbon steel and stainless steel. The stainless steel rapier reed manufacturer customizes aluminum alloy edge wrapped steel reeds of various lengths and heights. The wooden reeds wrapped in blue cloth tape use semi circular wooden strips as the skeleton, and the materials used for winding the reeds are generally polyester and nylon wires. The total length of 1515-75 steel reeds is 1873mm (1.873 meters).
The width of the aluminum alloy edge on one side of the stainless steel rapier reed is 1.8 centimeters, while the width on the other side is 1.2 centimeters. The total height of a conventional steel reed is about 11 centimeters, depending on the size of the fabric opening. The processing range of the height of the steel reed is 10.5-147cm, except for special split reeds; The width of a single reed is mainly 2.5mm, with other specifications such as 3.7mm and 5.4mm. When customizing the steel reed, detailed parameters such as length, total height, density, etc. need to be provided. Our company will draw based on the provided parameters and send them to the customer for confirmation.

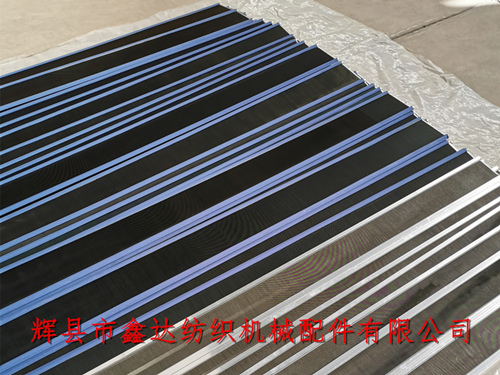

The silver white on the left side of the picture shows the steel reed of the rapier machine made of stainless steel reed, while the blue edge on the right side shows the 1515-75 inch steel reed (wooden reed) made of carbon steel reed. The color of the material can be clearly identified according to the picture. The particularity of customized products determines that attention must be paid to detail dimensions and quality. We will take every step of production seriously in this regard.
On the premise of providing customized 75 inch steel reeds, 1515 wooden rod reeds, and stainless steel rapier reeds, the reed manufacturers have certain requirements for the quantity of steel reeds purchased by customers. Reed customization instructions: Usually, under the same density specifications, 20 reeds are ordered for lengths of 1.1 meters and below, and 10 reeds are ordered for lengths of 1.1 meters and above. The default delivery time is 5-8 days.
The packaging of cotton weaving machine reeds, 75 reeds, 1515 reeds, GA615 reeds, and GA747 rapier machine reeds is a combination of cardboard boxes and woven bags, usually 20 pieces per box.Reed,Wooden Rod Reed,Stainless Steel Reed,Textile Equipment, If you need to find a steel reed manufacturer to customize steel reeds or purchase steel reed accessories, please contact Mr. Yang from Xinda Textile Accessories for consultation.
