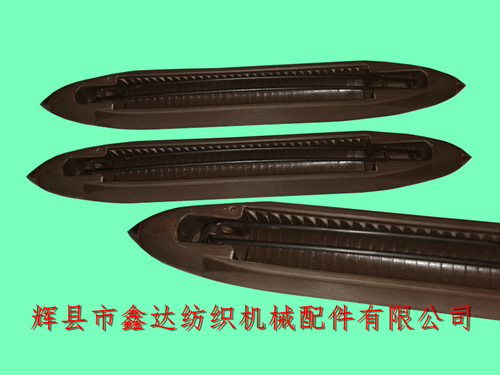

Huixian Xinda Textile Machinery Parts Co., Ltd. provides sack machine shuttle_ 385mm nylon shuttle_ Textile accessories: the color of this nylon sack shuttle is brown, its total length is 385mm, the outer width of the shuttle bottom is 44.5mm, the outer width of the upper part is 43.5mm, and the total height is 35mm; There are notch grooves on both sides and bottom of the shuttle inner chamber. The width of the shuttle chamber is 31mm. The upper cover plate is made of 3mm spring steel wire. The overall width is 15mm, and the length is about 28.2cm. There is a 6.5mm wide iron hook at the front weft lead out position.
The 385mm nylon shuttle has no porcelain eye. It uses a round hole with a diameter of 9mm+steel paper on the side for weft insertion. The nylon shuttle on the gunny bag loom is divided into left hand shuttle and right hand shuttle. Textile accessories include textile accessories and textile accessories. Textile accessories are accessories of textile machinery, and some of them use products other than pig iron, which are called textile accessories. They are often characterized by large consumption, multiple specifications of the same model, etc.
Textile accessories - shuttle packaging: carton, 50 pieces per box (the same hand), single shuttle weighs about 0.4 kg, the linear distance between the inside of the two steel pins at the tail is 24 mm, and the diameter of the steel pin is 2.7 mm.
If textile accessories purchasers in various cities need to weave nylon shuttles, loom shuttles, sack shuttles, hemp loom shuttles, 385mm * 45mm * 35mm brown shuttles, textile accessories and other products, please contact Mr. Yang of Xinda Textile Accessories to discuss cooperation matters. We sincerely welcome your presence!
