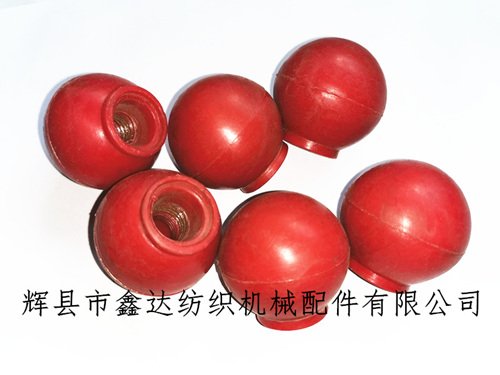

The loom handle ball belongs to the shuttle textile equipment accessories, which is inlaid with M12 nuts, and is installed on the loom switch handle I10. It is mainly used for opening and closing the loom. Color: red, material: plastic. The matching clearance between the switch handle I10 and pin i33 is less than 0.6mm. When the warp is cut off, when the shuttle is changed, when the shuttle is rolled off, when the empty car is closed, the shuttle textile equipment accessories - I10 is detached Close the I2 gap of the supporting foot by 1.6-2.4mm (the shuttle is placed on the side of the shuttle in the shed, sensitive to closing), and the loom crankshaft is dead center at the back.
The outer diameter of the loom handle ball is 37mm, one for each loom, regardless of the left and right. The handle ball can be used in 1511 loom, 56 inch loom and 1515-75 loom. Its package is 500 pieces per box.Shuttle Loom Handle Ball Textile Accessories.
The figure above shows the installation drawing of handle ball and loom switch handle bar I10. The whole set of handle bar is fixed on the foot of F220 or i29 switch handle base, and is connected with I28 handle base connector.
The handle ball of loom belongs to textile equipment, which is also a textile plastic accessory, nylon equipment of shuttle loom and nylon parts of old electric loom. If you want to buy switch rod, handle ball and other products of loom, please contact our company for consultation.
