Huixian Xinda Textile Machinery Accessories Co., Ltd. provides GA615 textile accessories throughout the year, GA615-2101 Loom Shuttle Box Cover Bracket, 2101 loom shuttle box cover plate supporting feet. There are shuttle textile machine accessories-2101 shuttle box cover plate supporting feet. The overall dimensions of the supporting feet are: length 137mm, width 105mm, height 80mm, material is HT15-33 gray pig iron, and each loom uses one. The supporting feet of 2101 loom shuttle box cover plate are divided into left mobile phone and right mobile phone, which are installed on the 3101 reed foot on the side of the loom shed.
There is an M8 screw hole beside the 2102 pin, which is used to adjust the height of the supporting foot of the shuttle box cover plate. The screw hole on the polished surface is M10, the rear width of the bottom arc polished surface is 38 mm, and the front width is 35.5 mm.

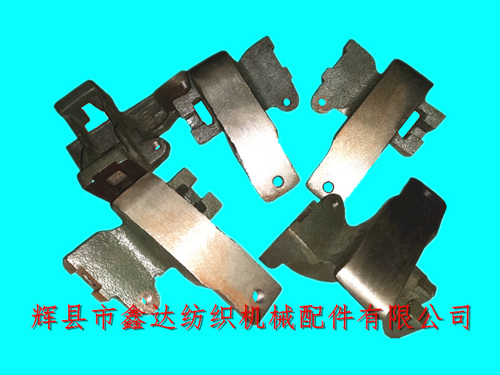

The above figure shows one left hand and one right hand of the 2101 loom supporting feet, the left hand is the left mobile phone, and the right hand is the right mobile phone; The 2101 shuttle box cover plate supporting feet are not packed, and each string has 10. The weight of a single loom supporting foot 2101 is about 0.82 kg.
Some 1515 weaving machines are modified by imitating the shuttle box of GA615, and 2101 shuttle box cover plate supporting feet are also used. Their use quantity and installation method are the same.Textile Accessories, Loom Feet, Shuttle Box Cover, GA615 Loom Parts.
The minimum order quantity of GA615 textile accessories 2101 loom shuttle box cover plate supporting feet is 10, which will be shipped within the agreed delivery time. By default, the source of goods will be arranged after the full payment is received in advance. If textile mills, cotton mills and canvas factories in various cities need to purchase shuttle textile accessories, loom supporting feet, shuttle box cover plate and GA615 loom accessories, please contact Mr. Yang of our company for details.
