Huixian Xinda Textile machinery accessories provide the old shuttle loom treads 2/2 twill peach plate accessories. The set of textile treads is composed of 6101, 6102, 6103 and 6104. The 2/2 twill loom peach plate is used for weaving twill warp and weft structure fabrics with heald frame on two sides. The front radius of the twill tread plate is R102, R105, R108 and R111.5, and the material is gray pig iron!

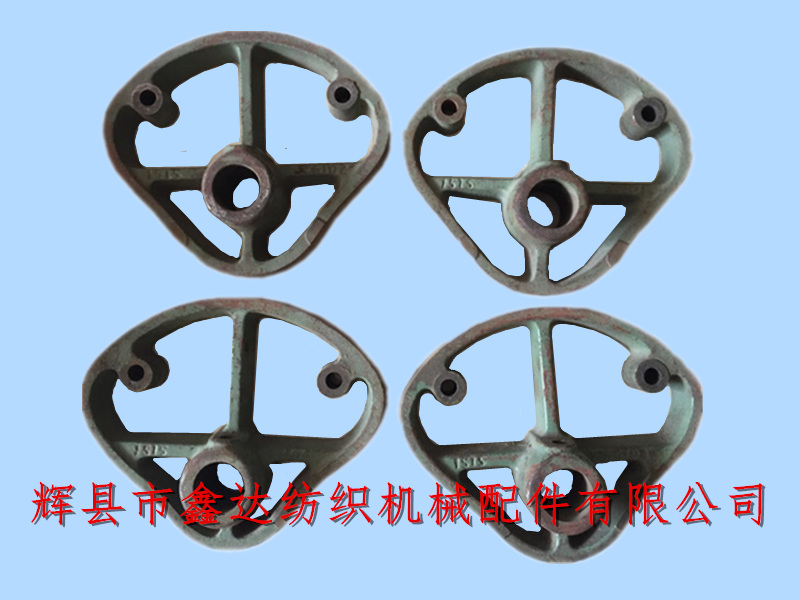

According to the photo above, it can be seen that the semicircle radian of the diagonal tread plate is different, which is caused by the different arc radius. The textile tread plate and textile peach plate in the above figure need to be installed orderly. It can also be used in 1515 old shuttle loom.
Whether the contour radian of tread plate accessories is accurate or not is the key to forming twill weaving fabric of GA615-135 loom. They are connected with 6114 peach disc shaft. Our company provides many services, such as customized production of textile pig iron parts, cast iron parts of old-fashioned traditional looms and sand turning parts of textile machines.

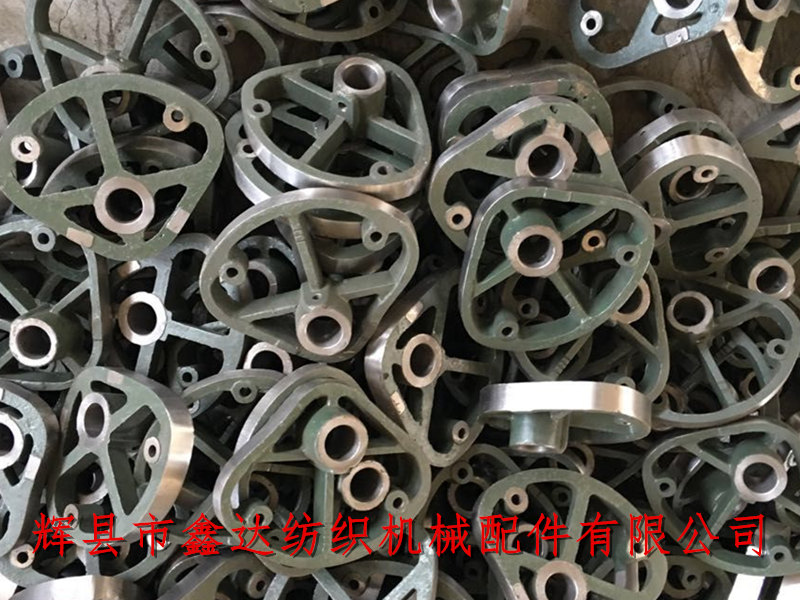

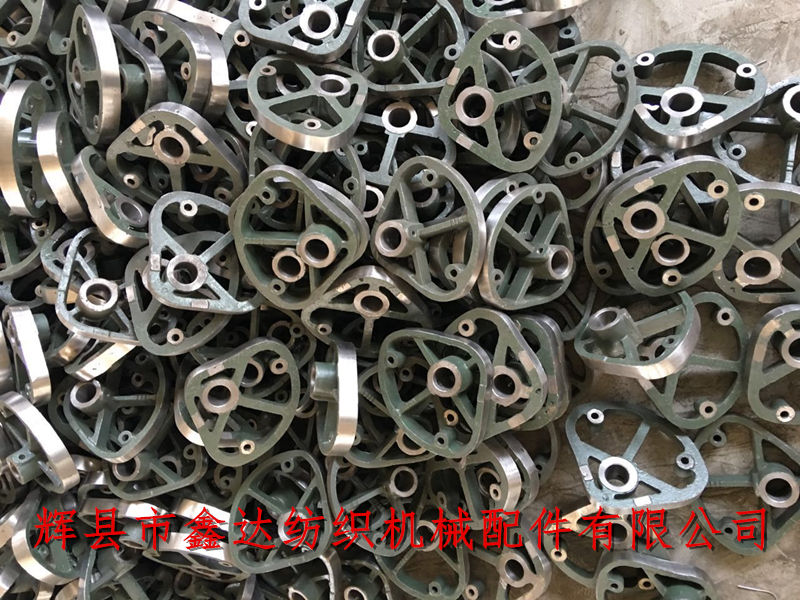

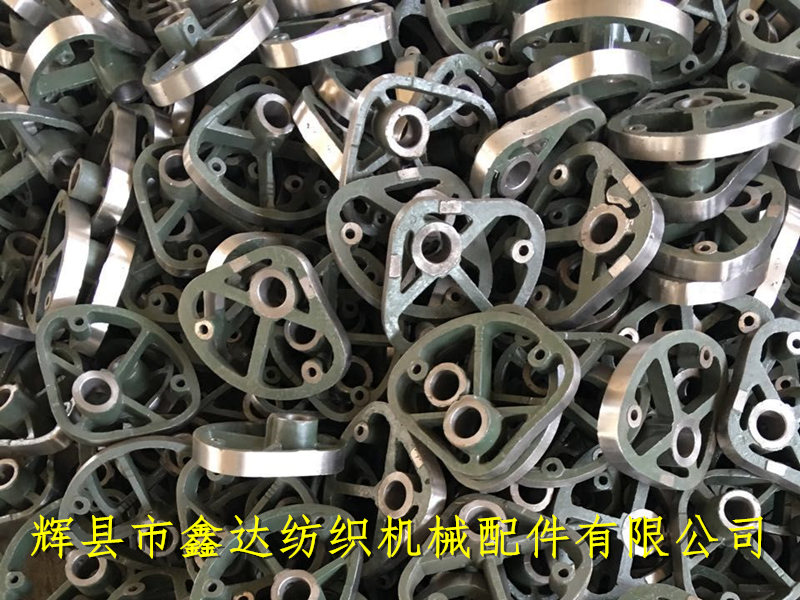

The packing of textile tread plate is woven bag, 50 pieces per bag, minimum order quantity: 50 pieces, color: green, peach plate movement surface polishing treatment, smooth and smooth.
The main function of 2/2 twill peach plate and textile tread plate is to realize the orderly lifting and lowering of the multi sheet heald frame of the loom by relying on its own shape, so as to maintain different lifting and lowering processes, and the weft can be smoothly woven into the cloth surface, thus weaving the fabric products required by customers.
If customers want to buy loom treads, twill peach trays, twill treads, loom treads, 2/2 twill peach pan accessories, please contact our company's Mr. Yang consultation!
