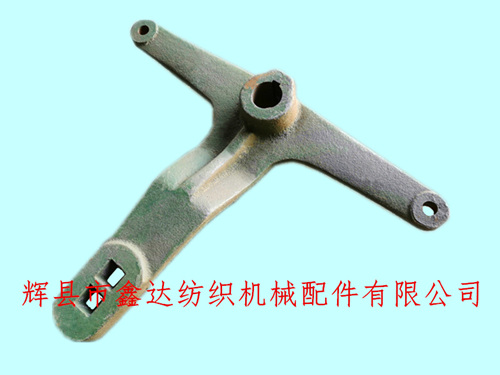

Xinda Textile Machinery Co., Ltd. specializes in providing 1515 Dobby Loom Textile T-lever 5122, textile accessories such as T-shaped lever 5122, double arm lever 5120, 5125 broach, etc. the 1515-5122 lever is installed on the outside of the dobby faucet device to transmit power to the 5118 rotating shaft. The diameter of the intermediate shaft hole of the dobby accessory-5122 lever is 28mm, the center hole distance between the two ends is 343mm, and there are two square carriage screw connection holes below.

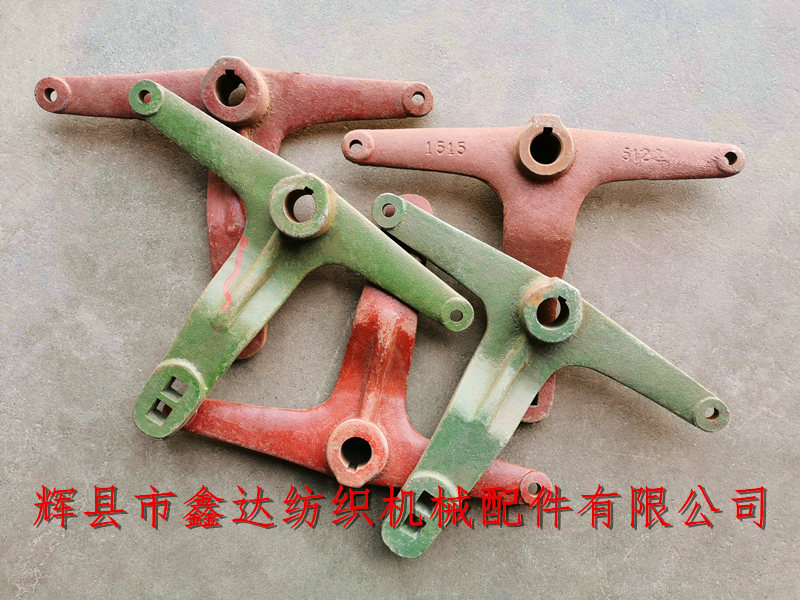

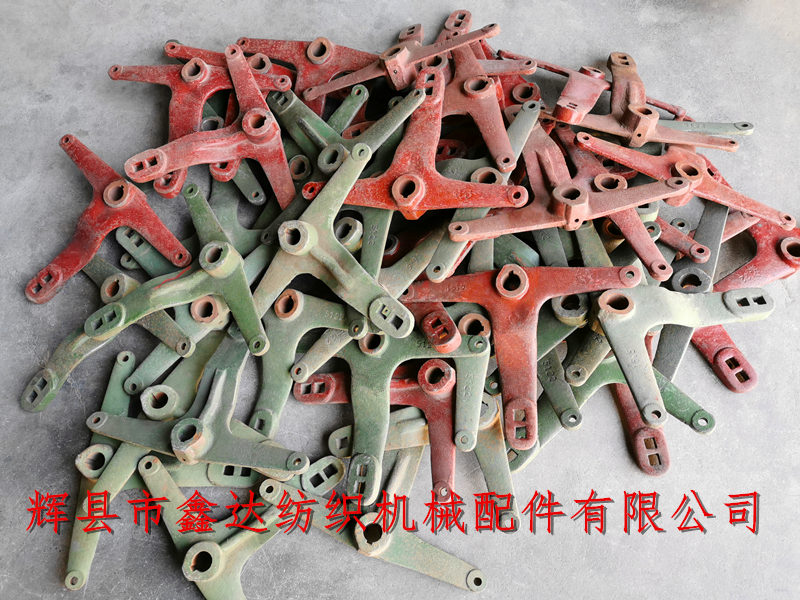

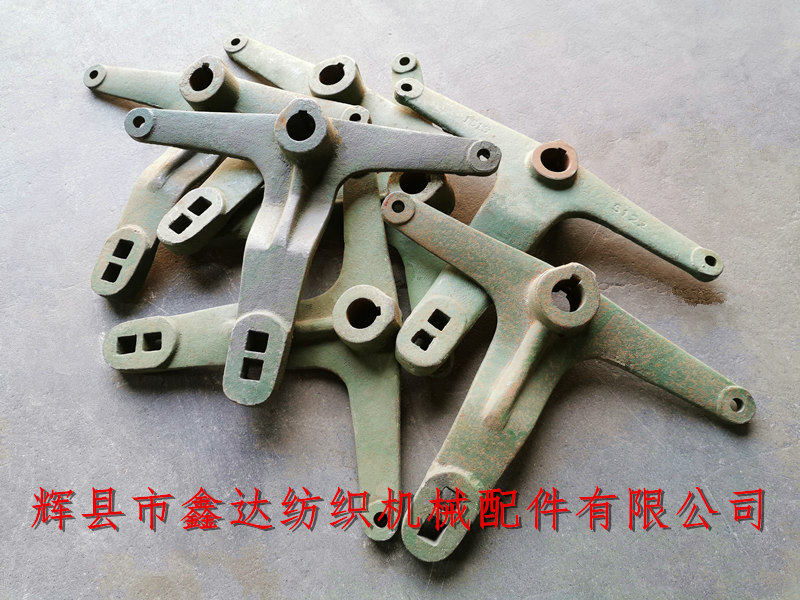

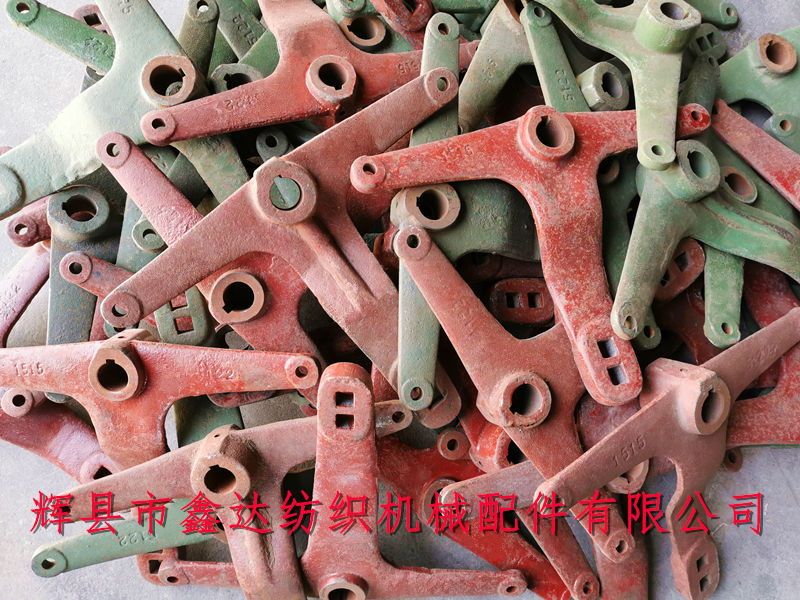

The picture above shows the actual shooting of 1515 type 5122 multi arm accessory. The red paint is made of nodular iron (mixture of gray iron and manganese steel), the green paint is made of HT15-33 gray iron. There are keyways and fastening screw holes above the shaft holes, and M6 square head screws are used to fix the key screws.
Textile accessory-5122t-shaped lever can be used for 1515 type multi arm faucet without any left or right hands. Since the faucet commonly used for 1511 type shuttle loom is also 1515 type, the multi arm accessory can be used for different types and specifications of shuttle loom.Dobby accessories,textile T-lever,textile accessories.
Each specification of textile machinery parts has its own application. It needs long-term experience and memory to replace the part number of loom parts. The shape of the dobby lever of the loom is like "T", so it is called "T-shaped lever". It swings left and right with the driving shaft hole as the center to change the internal direction of the dobby.
The single weight of T-shaped lever is about 3 kg, and the weight deviation is affected by the size parameters of the die. Different textile accessories manufacturers use different molds, but the key shape parameters of the multi arm accessory 5122 meet the requirements.
