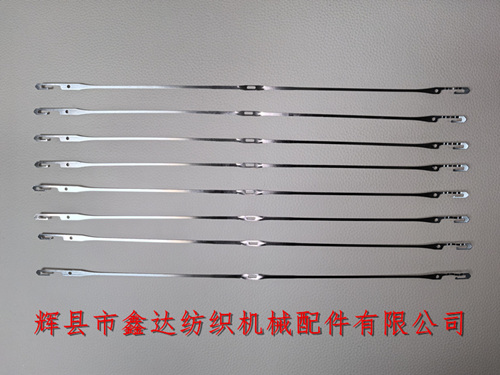

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 382J type steel sheet wire 8*2.5*0.4mm stainless heald, steel wire, and stainless steel wire strips (width 9mm or 9.5mm, thickness 1.5mm) used in conjunction with J-type stainless steel wire; The size of the middle hole of the sheet-like wire: inner height of 8mm, inner width of 2.5mm, thickness of 0.4mm, packaging quantity of 400 per string, 10000 per box.
The hanging ear position of the J-shaped steel sheet wire has a telescopic bend, and the angle between the middle wire hole and the hanging ears at both ends is 45 degrees. The inner length of the wire ear on this side of the picture is 21mm, the inner width is 2.7mm, and the inner width at the hook tip position is 1.8mm. The total length of the 382J steel sheet wire 8*2.5*0.4mm stainless steel wire is 390mm, and the distance between the center positions of the two circular holes is 328mm.
The inner length of the hanging ear on the other side is 21.3mm, and the inner width and hook tip position are the same as the dimensions on the other side. The diameter of the circular hole next to it is 3mm. The height of the S-shaped protrusion is 1mm, which means the total thickness is 2mm. The distance between the inner wall of the bent ear and the center of the middle hole is 186mm, and the distance between the inner wall of the bent ear and the center of the middle hole is 196mm.
The material of 382J*8*2.5*0.4mm steel sheet composite is stainless steel, which is stamped by a whole mold with good surface smoothness and easy installation during use; The packaging is in small wooden boxes, with a thickness of 0.4mm as an example. The net weight of 200 pieces is approximately 705 grams.
Normally, the minimum order quantity for 382J steel sheet wire is 10000 pieces. If textile production enterprises need to purchase steel sheet wire, 382 wire, stainless steel wire, 382J wire, and other specifications of stainless steel materials, please contact Mr. Yang from our company for consultation. For more detailed parameters about steel sheet wire, you can also contact us.
